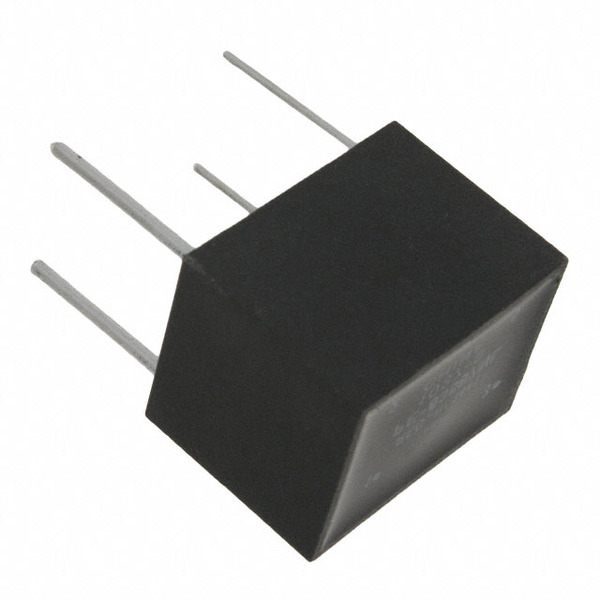

PE-63587NL
Pulse Electronics Corporation
Images are for reference only.
See Product Specifications for product details.
Buy PE-63587NL with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy PE-63587NL with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | PE-63587NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CURR SENSE XFMR 20A T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 40 pcs | 80 pcs | |
|---|---|---|---|---|---|
| $5.25 | $4.254 | $3.439 | $3.222 | ||
| 120 pcs | 280 pcs | 520 pcs | 1000 pcs | ||
| $3.077 | $2.987 | $2.896 | $2.806 | ||
Specifications
Data sheet
| Weight: | - |
|---|---|
| Type: | Invasive |
| Turns Ratio - Primary:Secondary: | - |
| Termination Style: | PC Pin |
| Size / Dimension: | 0.900" L x 0.700" W (22.86mm x 17.78mm) |
| Series: | THT |
| Ratings: | - |
| Packaging: | Tray |
| Other Names: | 553-1548 PE-63587NL-ND PE63587NL |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 11 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance: | 20mH |
| Height - Seated (Max): | 0.700" (17.78mm) |
| Frequency Range: | 20kHz ~ 200kHz |
| Energy Time (E.T.): | - |
| Detailed Description: | 20A Current Sense Transformer 20kHz ~ 200kHz 100 Ohm Primary, 1.4 Ohm Secondary 20mH Through Hole |
| DC Resistance (DCR): | 100 Ohm Primary, 1.4 Ohm Secondary |
| Current Ratio: | 100:1 |
| Current Rating: | 20A |
| Email: | info@cjjhk.com |
Introduce
We can supply PE-63587NL, use the request quote form to request PE-63587NL pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PE-63587NL.The price and lead time for PE-63587NL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PE-63587NL.We look forward to working with you to establish long-term relations of cooperation
