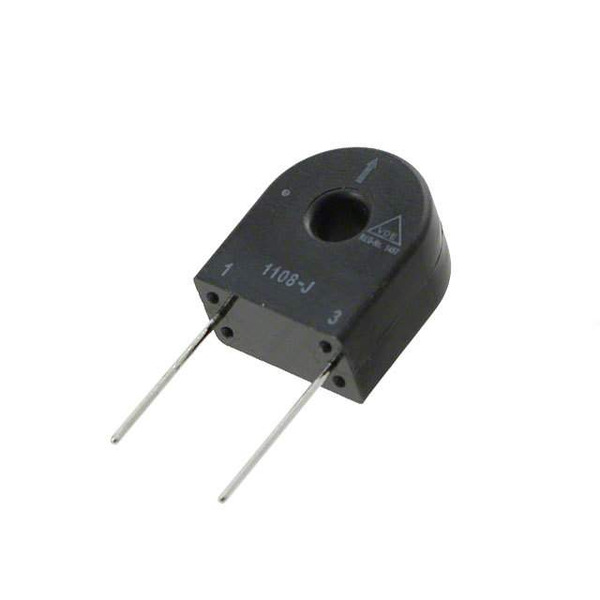

PE-51686NL
Pulse Electronics Corporation
Images are for reference only.
See Product Specifications for product details.
Buy PE-51686NL with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy PE-51686NL with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | PE-51686NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CURR SENSE XFMR 20A T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 60 pcs | 120 pcs | ||
|---|---|---|---|---|---|
| $3.27 | $2.289 | $1.962 | |||
| 540 pcs | 1020 pcs | 2520 pcs | |||
| $1.744 | $1.635 | $1.581 | |||
Specifications
Data sheet
| Type: | Invasive |
|---|---|
| Turns Ratio - Primary:Secondary: | - |
| Termination Style: | PC Pin |
| Size / Dimension: | 0.670" L x 0.390" W (17.01mm x 9.90mm) |
| Series: | THT |
| Ratings: | - |
| Packaging: | Tray |
| Other Names: | 553-1544 PE-51686NL-ND PE51686NL |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 13 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance: | 5mH |
| Height - Seated (Max): | 0.800" (20.32mm) |
| Frequency Range: | 20kHz ~ 200kHz |
| Energy Time (E.T.): | - |
| Detailed Description: | 20A Current Sense Transformer 20kHz ~ 200kHz 50 Ohm Primary, 700 mOhm Secondary 5mH Through Hole |
| DC Resistance (DCR): | 50 Ohm Primary, 700 mOhm Secondary |
| Current Ratio: | 50:1 |
| Current Rating: | 20A |
| Email: | info@cjjhk.com |
Introduce
We can supply PE-51686NL, use the request quote form to request PE-51686NL pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PE-51686NL.The price and lead time for PE-51686NL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PE-51686NL.We look forward to working with you to establish long-term relations of cooperation
