PD-30S
CUI, Inc.

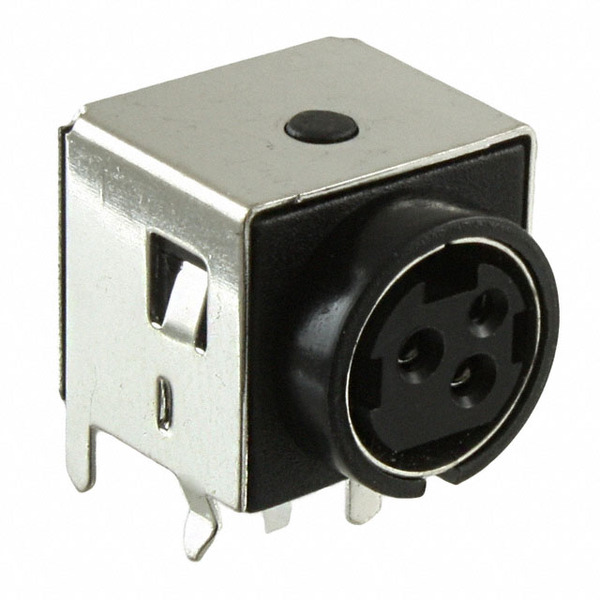

Images are for reference only.
See Product Specifications for product details.
Buy PD-30S with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy PD-30S with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | PD-30S |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN JACK FMALE DIN 3POS SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.78 | $2.67 | $2.448 | $2.336 | $2.225 | |
| 250 pcs | 680 pcs | 1360 pcs | 2720 pcs | ||
| $1.947 | $1.891 | $1.613 | $1.502 | ||
Specifications
Data sheet
| Voltage Rating: | 20VDC |
|---|---|
| Termination: | Solder |
| Shielding: | Shielded |
| Shell Size, MIL: | - |
| Shell Size - Insert: | DIN |
| Shell Material: | Polybutylene Terephthalate (PBT) |
| Shell Finish: | - |
| Series: | PD-S |
| Packaging: | Tray |
| Other Names: | 045-1317R CP-7230 PD30S |
| Orientation: | Keyed |
| Operating Temperature: | - |
| Number of Positions: | 3 (Power) |
| Mounting Type: | Through Hole, Right Angle |
| Mounting Feature: | - |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | - |
| Manufacturer Standard Lead Time: | 17 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insert Material: | - |
| Ingress Protection: | - |
| Features: | Board Lock, Ground |
| Fastening Type: | Push-Pull |
| Detailed Description: | 3 (Power) Position Circular Connector Jack, Female Sockets Solder Tin |
| Current Rating: | 7.5A |
| Contact Material: | Brass, Phosphor Bronze |
| Contact Finish Thickness - Mating: | - |
| Contact Finish - Mating: | Tin |
| Connector Type: | Jack, Female Sockets |
| Color: | Black, Silver |
| California Prop 65: | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
| Cable Opening: | - |
| Backshell Material, Plating: | - |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply PD-30S, use the request quote form to request PD-30S pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PD-30S.The price and lead time for PD-30S depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PD-30S.We look forward to working with you to establish long-term relations of cooperation
