PCN1-S5-D15-M
CUI, Inc.

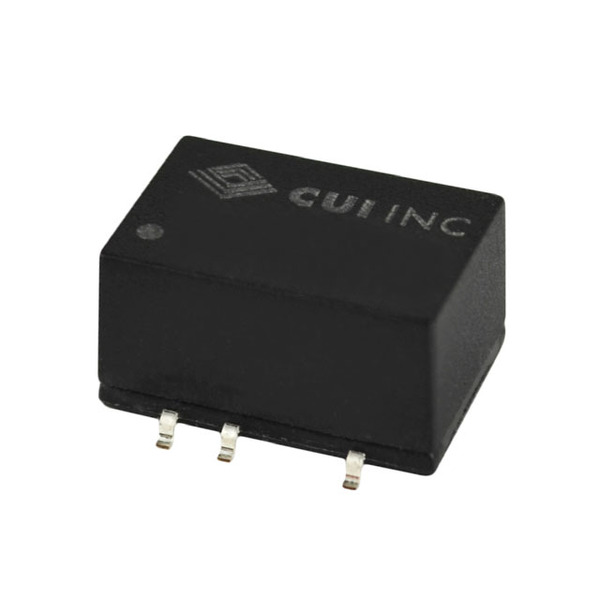

Images are for reference only.
See Product Specifications for product details.
Buy PCN1-S5-D15-M with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy PCN1-S5-D15-M with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | PCN1-S5-D15-M |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | DC DC CONVERTER +/-15V 1W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 430 pcs | ||||
|---|---|---|---|---|---|
| $4.245 | |||||
Specifications
Data sheet
| Voltage - Output 3: | - |
|---|---|
| Voltage - Output 2: | -15V |
| Voltage - Output 1: | 15V |
| Voltage - Isolation: | 1.5kV |
| Voltage - Input (Min): | 4.5V |
| Voltage - Input (Max): | 5.5V |
| Type: | Isolated Module |
| Size / Dimension: | 0.64" L x 0.39" W x 0.29" H (16.2mm x 9.8mm x 7.4mm) |
| Series: | PCN1-M |
| Power (Watts): | 1W |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | 10-SMD Module, 5 Leads, Gull Wing |
| Operating Temperature: | -40°C ~ 100°C |
| Number of Outputs: | 2 |
| Mounting Type: | Surface Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Features: | SCP |
| Efficiency: | 78% |
| Detailed Description: | Isolated Module DC DC Converter 2 Output 15V -15V 33mA, 33mA 4.5V - 5.5V Input |
| Current - Output (Max): | 33mA, 33mA |
| California Prop 65: | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
| Applications: | ITE (Commercial) |
| Email: | info@cjjhk.com |
Introduce
We can supply PCN1-S5-D15-M, use the request quote form to request PCN1-S5-D15-M pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PCN1-S5-D15-M.The price and lead time for PCN1-S5-D15-M depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PCN1-S5-D15-M.We look forward to working with you to establish long-term relations of cooperation
