PB0025NLT
Pulse Electronics Corporation

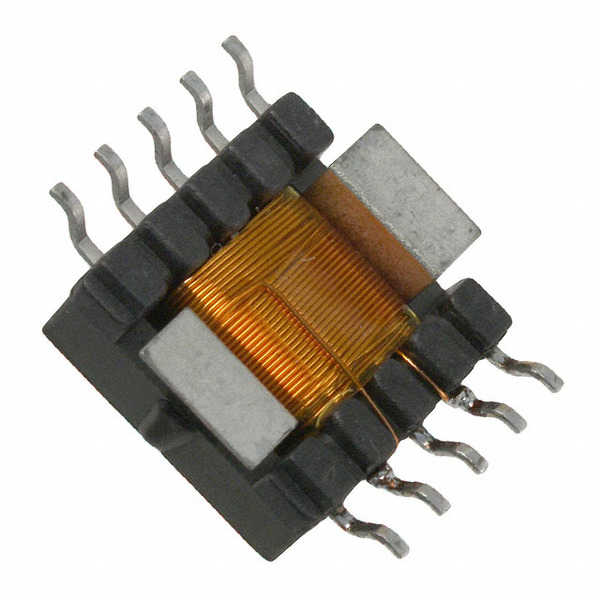

Images are for reference only.
See Product Specifications for product details.
Buy PB0025NLT with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy PB0025NLT with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | PB0025NLT |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CURR SENSE XFMR 50:1 35A SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a Quote | ||||
Specifications
Data sheet
| Weight: | - |
|---|---|
| Type: | Invasive |
| Turns Ratio - Primary:Secondary: | 50:1 |
| Termination Style: | Gull Wing |
| Size / Dimension: | 0.591" L x 0.784" W (15.00mm x 19.91mm) |
| Series: | PB002XNL |
| Ratings: | - |
| Packaging: | Tape & Reel (TR) |
| Other Names: | Q10850117 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance: | 1.4mH |
| Height - Seated (Max): | 0.394" (10.00mm) |
| Frequency Range: | 50kHz ~ 500kHz |
| Energy Time (E.T.): | - |
| Detailed Description: | 35A 50:1 Current Sense Transformer 50kHz ~ 500kHz 0.42 mOhm Primary, 700 mOhm Secondary 1.4mH Surface Mount |
| DC Resistance (DCR): | 0.42 mOhm Primary, 700 mOhm Secondary |
| Current Ratio: | - |
| Current Rating: | 35A |
| Email: | info@cjjhk.com |
Introduce
We can supply PB0025NLT, use the request quote form to request PB0025NLT pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PB0025NLT.The price and lead time for PB0025NLT depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PB0025NLT.We look forward to working with you to establish long-term relations of cooperation
