PA4547.561NLT
Pulse Electronics Corporation

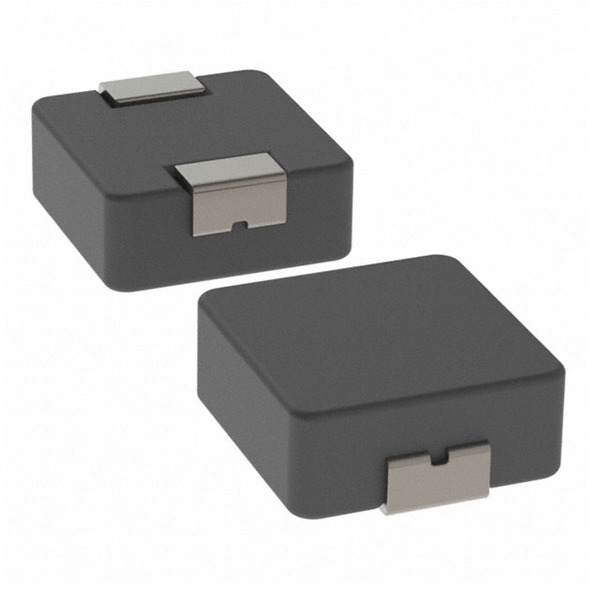

Images are for reference only.
See Product Specifications for product details.
Buy PA4547.561NLT with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy PA4547.561NLT with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | PA4547.561NLT |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | INDUCTOR 0.56UH SMT 3.8 X 3.4 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $1.49 | $1.383 | $1.00 | $0.766 | $0.681 | |
Specifications
Data sheet
| Type: | Molded |
|---|---|
| Tolerance: | ±20% |
| Supplier Device Package: | - |
| Size / Dimension: | 0.138" L x 0.126" W (3.50mm x 3.20mm) |
| Shielding: | Unshielded |
| Series: | PA4547.XXXNLT |
| Ratings: | - |
| Q @ Freq: | - |
| Packaging: | Cut Tape (CT) |
| Package / Case: | Nonstandard |
| Other Names: | 553-4058-1 |
| Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Core: | - |
| Manufacturer Standard Lead Time: | 9 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance Frequency - Test: | 100kHz |
| Inductance: | 560nH |
| Height - Seated (Max): | 0.059" (1.50mm) |
| Frequency - Self Resonant: | - |
| Features: | - |
| Detailed Description: | 560nH Unshielded Molded Inductor 5A 33 mOhm Max Nonstandard |
| DC Resistance (DCR): | 33 mOhm Max |
| Current Rating: | 5A |
| Current - Saturation: | 7.2A |
| Email: | info@cjjhk.com |
Introduce
We can supply PA4547.561NLT, use the request quote form to request PA4547.561NLT pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PA4547.561NLT.The price and lead time for PA4547.561NLT depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PA4547.561NLT.We look forward to working with you to establish long-term relations of cooperation
