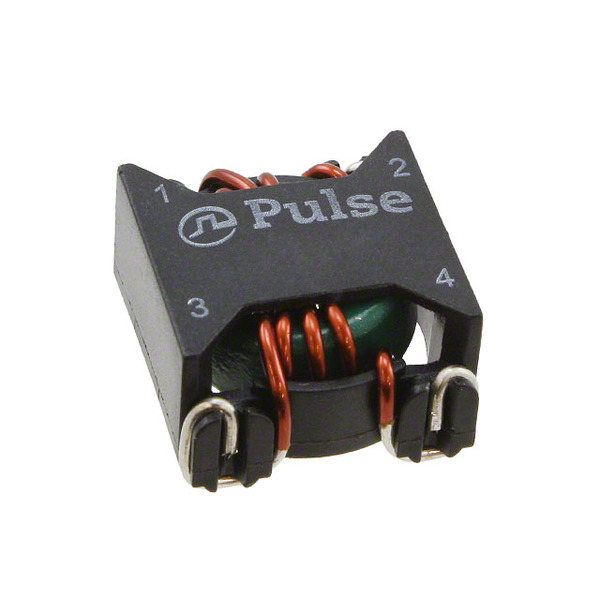

PA2756NL
Pulse Electronics Corporation
Images are for reference only.
See Product Specifications for product details.
Buy PA2756NL with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy PA2756NL with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | PA2756NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | COMMON MODE CHOKE 8A 2LN SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 75 pcs | 150 pcs | ||
|---|---|---|---|---|---|
| $2.24 | $1.621 | $1.449 | |||
| 525 pcs | 1050 pcs | 2550 pcs | |||
| $1.173 | $1.07 | $1.035 | |||
Specifications
Data sheet
| Voltage Rating - DC: | - |
|---|---|
| Voltage Rating - AC: | - |
| Size / Dimension: | 0.670" L x 0.770" W (17.02mm x 19.56mm) |
| Series: | - |
| Ratings: | - |
| Packaging: | Tube |
| Package / Case: | Horizontal, 4 PC Pad |
| Other Names: | 553-2124 553-2124-ND 553-2194 PA2756NL-ND |
| Operating Temperature: | -40°C ~ 130°C |
| Number of Lines: | 2 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 15 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height (Max): | 0.390" (9.91mm) |
| Filter Type: | Power Line |
| Features: | - |
| Detailed Description: | 2 Line Common Mode Choke Surface Mount 8A DCR 7.7 mOhm |
| DC Resistance (DCR) (Max): | 7.7 mOhm |
| Current Rating (Max): | 8A |
| Approvals: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply PA2756NL, use the request quote form to request PA2756NL pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PA2756NL.The price and lead time for PA2756NL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PA2756NL.We look forward to working with you to establish long-term relations of cooperation
