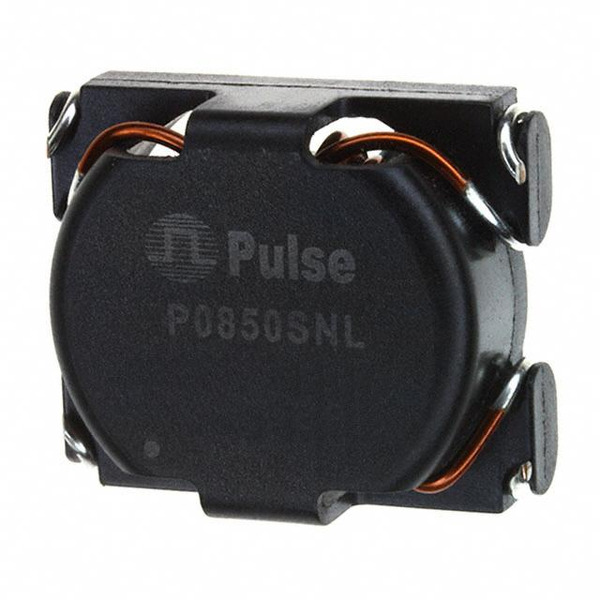

P0850SNL
Pulse Electronics Corporation
Images are for reference only.
See Product Specifications for product details.
Buy P0850SNL with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy P0850SNL with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | P0850SNL |
|---|---|
| Manufacturer | Pulse |
| Description | P08XX SMT Toroid Inductor series for National 260kHz Simple Switcher, Up To 5A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $2.895 | $2.613 | $2.357 | $2.306 | ||
Specifications
Data sheet
| Type: | Toroidal |
|---|---|
| Tolerance: | ±20% |
| Supplier Device Package: | - |
| Size / Dimension: | 1.220" L x 1.000" W (30.99mm x 25.40mm) |
| Shielding: | Shielded |
| Series: | Bigfoot |
| Ratings: | - |
| Q @ Freq: | - |
| Packaging: | Tube |
| Package / Case: | Nonstandard |
| Other Names: | 553-1130 |
| Operating Temperature: | -40°C ~ 130°C |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Core: | - |
| Manufacturer Standard Lead Time: | 15 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance: | 23µH |
| Height - Seated (Max): | 0.500" (12.70mm) |
| Frequency - Self Resonant: | - |
| Features: | - |
| Detailed Description: | 23µH Shielded Toroidal Inductor 5A 13 mOhm Nonstandard |
| DC Resistance (DCR): | 13 mOhm |
| Current Rating: | 5A |
| Current - Saturation: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply P0850SNL, use the request quote form to request P0850SNL pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number P0850SNL.The price and lead time for P0850SNL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# P0850SNL.We look forward to working with you to establish long-term relations of cooperation
