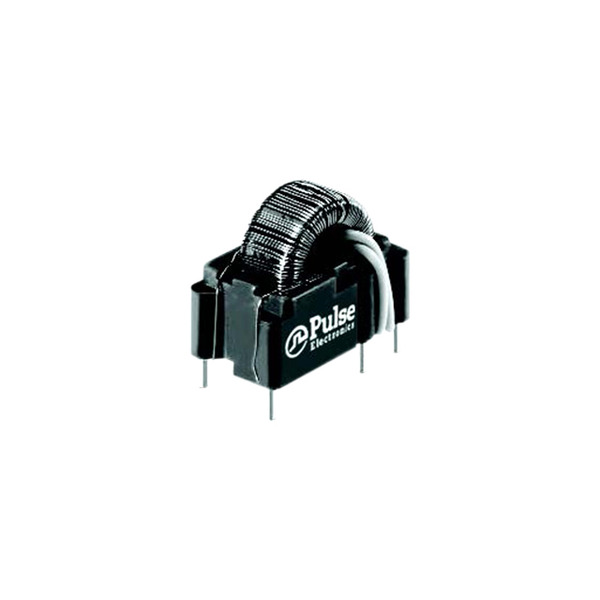

P0583NL
Pulse Electronics Corporation
Images are for reference only.
See Product Specifications for product details.
Buy P0583NL with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy P0583NL with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | P0583NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CURR SENSE XFMR 50:1:1 36A T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 80 pcs | 160 pcs |
|---|---|---|---|---|---|
| $3.42 | $2.773 | $2.242 | $2.10 | $2.006 | |
| 320 pcs | 560 pcs | 1040 pcs | 5040 pcs | ||
| $1.947 | $1.888 | $1.829 | $1.682 | ||
Specifications
Data sheet
| Weight: | 0.011 lb (4.99g) |
|---|---|
| Type: | Invasive |
| Turns Ratio - Primary:Secondary: | 50:1:1 |
| Termination Style: | PC Pin |
| Size / Dimension: | 0.810" L x 0.580" W (20.57mm x 14.73mm) |
| Series: | THT |
| Ratings: | - |
| Packaging: | Tray |
| Other Names: | 553-2660 P0583NL-ND |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 13 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance: | 5mH |
| Height - Seated (Max): | 0.750" (19.05mm) |
| Frequency Range: | 50kHz ~ 500kHz |
| Energy Time (E.T.): | - |
| Detailed Description: | 36A 50:1:1 Current Sense Transformer 50kHz ~ 500kHz 700 mOhm Primary, 1.7 mOhm Secondary 5mH Through Hole |
| DC Resistance (DCR): | 700 mOhm Primary, 1.7 mOhm Secondary |
| Current Ratio: | - |
| Current Rating: | 36A |
| Email: | info@cjjhk.com |
Introduce
We can supply P0583NL, use the request quote form to request P0583NL pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number P0583NL.The price and lead time for P0583NL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# P0583NL.We look forward to working with you to establish long-term relations of cooperation
