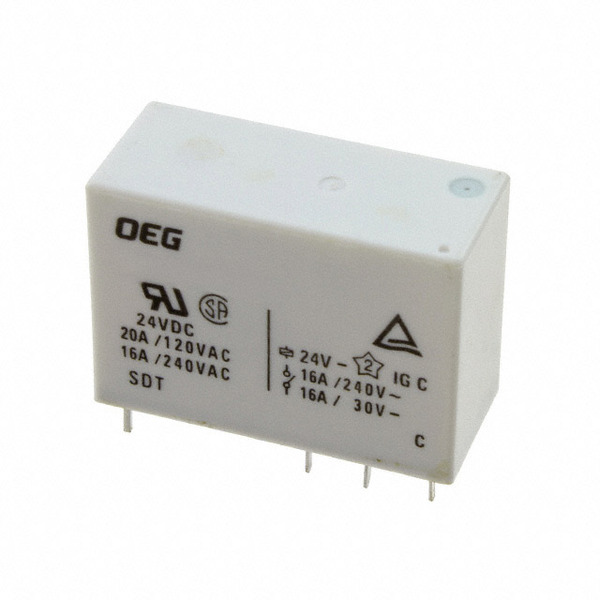

OZ-SH-124D,294
Agastat Relays / TE Connectivity
Images are for reference only.
See Product Specifications for product details.
Buy OZ-SH-124D,294 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy OZ-SH-124D,294 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | OZ-SH-124D,294 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RELAY GEN PURPOSE SPDT 16A 24V |
| Lead Free Status / RoHS Status | Contains lead / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 20 pcs | 40 pcs | 60 pcs | |
|---|---|---|---|---|---|
| $3.67 | $3.443 | $3.06 | $2.907 | ||
| 100 pcs | 260 pcs | 500 pcs | 1000 pcs | ||
| $2.754 | $2.448 | $2.295 | $2.142 | ||
Specifications
Data sheet
| Turn On Voltage (Max): | 16.8 VDC |
|---|---|
| Turn Off Voltage (Min): | 1.2 VDC |
| Termination Style: | PC Pin |
| Switching Voltage: | 240VAC, 24VDC - Max |
| Series: | OZ, OEG |
| Release Time: | 8ms |
| Relay Type: | General Purpose |
| Packaging: | Tube |
| Other Names: | 1440002-9 OZ-SH-124D,294-ND PB1854 |
| Operating Temperature: | -30°C ~ 55°C |
| Operate Time: | 15ms |
| Mounting Type: | Through Hole |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Lead Free Status / RoHS Status: | Contains lead / RoHS Compliant |
| Features: | Insulation - Class A, Sealed - Fully |
| Detailed Description: | General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole |
| Contact Rating (Current): | 16A |
| Contact Material: | Silver Cadmium Oxide (AgCdO) |
| Contact Form: | SPDT (1 Form C) |
| Coil Voltage: | 24VDC |
| Coil Type: | Non Latching |
| Coil Resistance: | 820 Ohms |
| Coil Power: | 720 mW |
| Coil Current: | 29.3mA |
| Email: | info@cjjhk.com |
Introduce
We can supply OZ-SH-124D,294, use the request quote form to request OZ-SH-124D,294 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number OZ-SH-124D,294.The price and lead time for OZ-SH-124D,294 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# OZ-SH-124D,294.We look forward to working with you to establish long-term relations of cooperation
