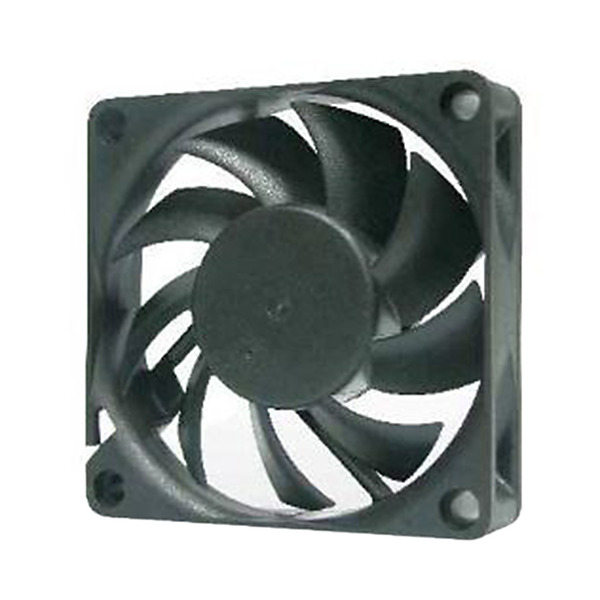

OD7015-12HHB01A
Orion Fans
Images are for reference only.
See Product Specifications for product details.
Buy OD7015-12HHB01A with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy OD7015-12HHB01A with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | OD7015-12HHB01A |
|---|---|
| Manufacturer | Orion Fans |
| Description | FAN AXIAL 70X15MM 12VDC WIRE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $9.15 | $8.712 | $8.168 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $7.242 | $6.806 | $6.67 | |||
Specifications
Data sheet
| Width: | 15.50mm |
|---|---|
| Weight: | 0.111 lb (50.35g) |
| Voltage Range: | 7 ~ 13.2VDC |
| Voltage - Rated: | 12VDC |
| Termination: | 3 Wire Leads |
| Static Pressure: | 0.260 in H2O (64.8 Pa) |
| Size / Dimension: | Square - 70mm L x 70mm H |
| Series: | OD7015 |
| RPM: | 5500 RPM |
| Power (Watts): | 4.32W |
| Other Names: | 1053-1607 OD7015-12HHB01A-ND OD7015-12HHB01AX OD701512HHB01A |
| Operating Temperature: | 14 ~ 158°F (-10 ~ 70°C) |
| Noise: | 44.5 dB |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Frame: | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Material - Blade: | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Manufacturer Standard Lead Time: | 19 Weeks |
| Lifetime @ Temp.: | 70000 Hrs @ 40°C |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Features: | Speed Sensor (Tach) |
| Fan Type: | Tubeaxial |
| Current Rating: | 0.260A |
| Bearing Type: | Ball |
| Approvals: | cURus, TUV |
| Air Flow: | 41.0 CFM (1.15m³/min) |
