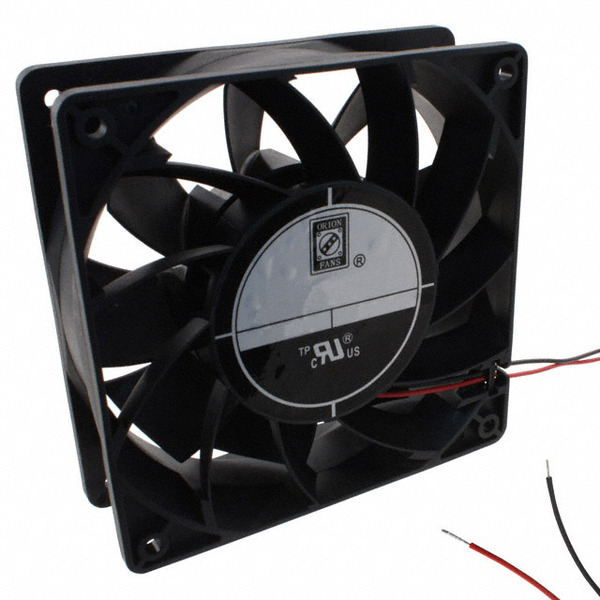

OD1238-24HBVXC
Orion Fans
Images are for reference only.
See Product Specifications for product details.
Buy OD1238-24HBVXC with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy OD1238-24HBVXC with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | OD1238-24HBVXC |
|---|---|
| Manufacturer | Orion Fans |
| Description | FAN AXIAL 120X38MM 24VDC WIRE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $32.67 | $29.70 | $28.71 | $24.75 | $24.255 | |
Specifications
Data sheet
| Width: | 38.00mm |
|---|---|
| Weight: | - |
| Voltage Range: | 12 ~ 28VDC |
| Voltage - Rated: | 24VDC |
| Termination: | 2 Wire Leads |
| Static Pressure: | 1.350 in H2O (336.3 Pa) |
| Size / Dimension: | Square - 120mm L x 120mm H |
| Series: | OD1238 |
| RPM: | 5000 RPM |
| Power (Watts): | 40.80W |
| Other Names: | 1053-1157 OD1238-24HBVXCX OD123824HBVXC OD1238PT-24HBVXC |
| Operating Temperature: | 14 ~ 158°F (-10 ~ 70°C) |
| Noise: | 65.0 dB |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Frame: | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Material - Blade: | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Manufacturer Standard Lead Time: | 18 Weeks |
| Lifetime @ Temp.: | 65000 Hrs @ 45°C |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Features: | - |
| Fan Type: | Tubeaxial |
| Current Rating: | 1.7A |
| Bearing Type: | Ball |
| Approvals: | cURus, TUV |
| Air Flow: | 226.0 CFM (6.33m³/min) |
| Email: | info@cjjhk.com |
Introduce
We can supply OD1238-24HBVXC, use the request quote form to request OD1238-24HBVXC pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number OD1238-24HBVXC.The price and lead time for OD1238-24HBVXC depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# OD1238-24HBVXC.We look forward to working with you to establish long-term relations of cooperation
