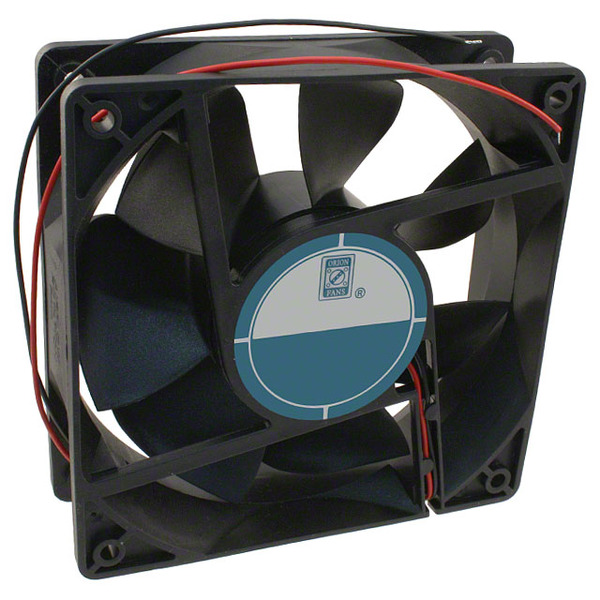

OD1238-12HHB
Orion Fans
Images are for reference only.
See Product Specifications for product details.
Buy OD1238-12HHB with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy OD1238-12HHB with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | OD1238-12HHB |
|---|---|
| Manufacturer | Orion Fans |
| Description | FAN AXIAL 120X38MM 12VDC WIRE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $19.06 | $17.325 | $16.748 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $14.438 | $14.149 | $14.091 | |||
Specifications
Data sheet
| Width: | 38.00mm |
|---|---|
| Weight: | - |
| Voltage Range: | 6 ~ 14VDC |
| Voltage - Rated: | 12VDC |
| Termination: | 2 Wire Leads |
| Static Pressure: | 0.570 in H2O (142.0 Pa) |
| Size / Dimension: | Square - 120mm L x 120mm H |
| Series: | OD1238 |
| RPM: | 3800 RPM |
| Power (Watts): | 15.60W |
| Other Names: | 1053-1148 OD1238-12HHBX OD123812HHB OD1238PT-12HHB |
| Operating Temperature: | -4 ~ 167°F (-20 ~ 75°C) |
| Noise: | 52.0 dB |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Frame: | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Material - Blade: | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Manufacturer Standard Lead Time: | 19 Weeks |
| Lifetime @ Temp.: | 65000 Hrs @ 45°C |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Features: | - |
| Fan Type: | Tubeaxial |
| Current Rating: | 1.3A |
| Bearing Type: | Ball |
| Approvals: | cURus, TUV |
| Air Flow: | 154.0 CFM (4.31m³/min) |
| Email: | info@cjjhk.com |
Introduce
We can supply OD1238-12HHB, use the request quote form to request OD1238-12HHB pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number OD1238-12HHB.The price and lead time for OD1238-12HHB depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# OD1238-12HHB.We look forward to working with you to establish long-term relations of cooperation
