NRPN124RCCN-RC
Sullins Connector Solutions

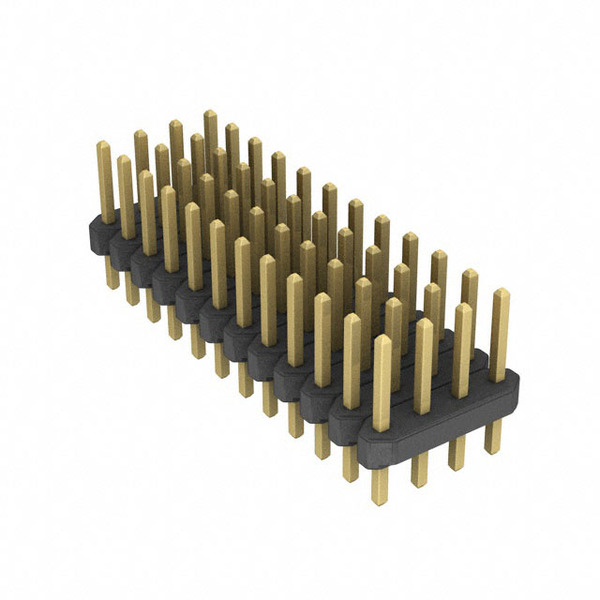

Images are for reference only.
See Product Specifications for product details.
Buy NRPN124RCCN-RC with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy NRPN124RCCN-RC with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | NRPN124RCCN-RC |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN HEADER 2MM QUAD STR 48POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $5.07 | $4.391 | $3.716 | $2.956 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $2.407 | $2.196 | $2.111 | |||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Board |
| Shrouding: | Unshrouded |
| Series: | - |
| Row Spacing - Mating: | 0.079" (2.00mm) |
| Pitch - Mating: | 0.079" (2.00mm) |
| Packaging: | Bulk |
| Overall Contact Length: | 0.327" (8.30mm) |
| Other Names: | PRPN124RCCN-RC S5804-12 |
| Operating Temperature: | -40°C ~ 105°C |
| Number of Rows: | 4 |
| Number of Positions Loaded: | All |
| Number of Positions: | 48 |
| Mounting Type: | Through Hole |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polyamide (PA6T), Nylon 6T |
| Insulation Height: | 0.059" (1.50mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | - |
| Fastening Type: | Push-Pull |
| Detailed Description: | Connector Header Through Hole 48 position 0.079" (2.00mm) |
| Current Rating: | 2A |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Brass |
| Contact Length - Post: | 0.094" (2.40mm) |
| Contact Length - Mating: | 0.173" (4.40mm) |
| Contact Finish Thickness - Post: | Flash |
| Contact Finish Thickness - Mating: | Flash |
| Contact Finish - Post: | Gold |
| Contact Finish - Mating: | Gold |
| Connector Type: | Header |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply NRPN124RCCN-RC, use the request quote form to request NRPN124RCCN-RC pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NRPN124RCCN-RC.The price and lead time for NRPN124RCCN-RC depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NRPN124RCCN-RC.We look forward to working with you to establish long-term relations of cooperation
