NLHV25T-R15J-PF
TDK Corporation

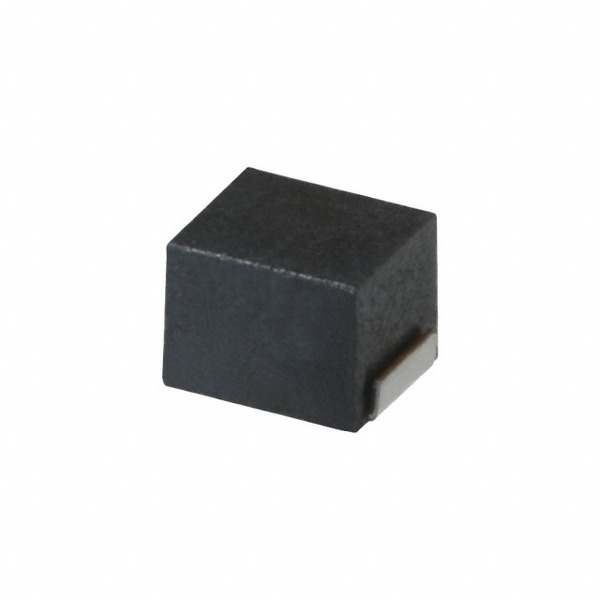

Images are for reference only.
See Product Specifications for product details.
Buy NLHV25T-R15J-PF with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy NLHV25T-R15J-PF with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | NLHV25T-R15J-PF |
|---|---|
| Manufacturer | TDK Corporation |
| Description | FIXED IND 150NH 500MA 420 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | |||
|---|---|---|---|---|---|
| $0.26 | $0.23 | ||||
Specifications
Data sheet
| Type: | Wirewound |
|---|---|
| Tolerance: | ±5% |
| Supplier Device Package: | - |
| Size / Dimension: | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Shielding: | Unshielded |
| Series: | NLHV |
| Ratings: | - |
| Q @ Freq: | 30 @ 25.2MHz |
| Packaging: | Cut Tape (CT) |
| Package / Case: | Nonstandard |
| Other Names: | 445-3632-1 |
| Operating Temperature: | -40°C ~ 105°C |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Core: | - |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance Frequency - Test: | 25.2MHz |
| Inductance: | 150nH |
| Height - Seated (Max): | 0.071" (1.80mm) |
| Frequency - Self Resonant: | 550MHz |
| Detailed Description: | 150nH Unshielded Wirewound Inductor 500mA 420 mOhm Max Nonstandard |
| DC Resistance (DCR): | 420 mOhm Max |
| Current Rating: | 500mA |
| Current - Saturation: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply NLHV25T-R15J-PF, use the request quote form to request NLHV25T-R15J-PF pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NLHV25T-R15J-PF.The price and lead time for NLHV25T-R15J-PF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NLHV25T-R15J-PF.We look forward to working with you to establish long-term relations of cooperation
