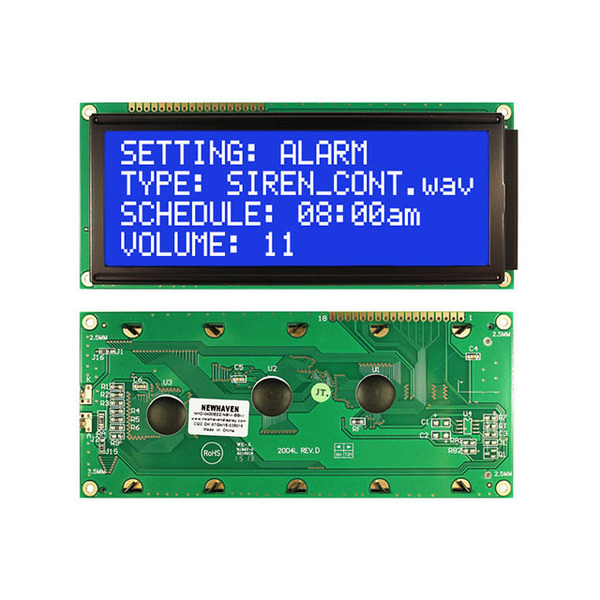

NHD-0420E2Z-NSW-BBW
Newhaven Display, Intl.
Images are for reference only.
See Product Specifications for product details.
Buy NHD-0420E2Z-NSW-BBW with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy NHD-0420E2Z-NSW-BBW with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | NHD-0420E2Z-NSW-BBW |
|---|---|
| Manufacturer | Newhaven Display, Intl. |
| Description | LCD MOD CHA R 4X20 WH TRANSM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | ||
|---|---|---|---|---|---|
| $28.20 | $26.508 | $24.816 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $23.406 | $22.278 | $21.15 | |||
Specifications
Data sheet
| Voltage - Supply: | 4.5 V ~ 5.5 V |
|---|---|
| Viewing Area: | 123.50mm L x 43.00mm W |
| Text Color: | White |
| Series: | - |
| Outline L x W x H: | 146.00mm x 62.50mm x 13.60mm |
| Other Names: | NHD0420E2ZNSWBBW |
| Operating Temperature: | -20°C ~ 70°C |
| Number of Characters: | 80 |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Interface: | Parallel |
| Dot Size: | 0.92mm W x 1.10mm H |
| Display Type: | STN - Super-Twisted Nematic |
| Display Mode: | Transmissive |
| Display Format: | 20 x 4 |
| Detailed Description: | Character LCD Display Module Transmissive 5 x 8 Dots STN - Super-Twisted Nematic LED - White Parallel 146.00mm x 62.50mm x 13.60mm |
| Character Size: | 9.22mm H x 4.84mm W |
| Character Format: | 5 x 8 Dots |
| Backlight: | LED - White |
| Background Color: | Blue |
| Email: | info@cjjhk.com |
Introduce
We can supply NHD-0420E2Z-NSW-BBW, use the request quote form to request NHD-0420E2Z-NSW-BBW pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NHD-0420E2Z-NSW-BBW.The price and lead time for NHD-0420E2Z-NSW-BBW depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NHD-0420E2Z-NSW-BBW.We look forward to working with you to establish long-term relations of cooperation
