NCP81382MNTXG
onsemi

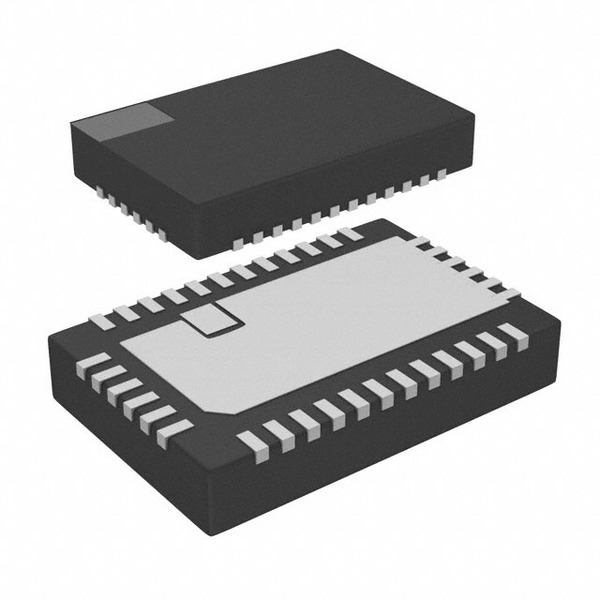

Images are for reference only.
See Product Specifications for product details.
Buy NCP81382MNTXG with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy NCP81382MNTXG with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | NCP81382MNTXG |
|---|---|
| Manufacturer | onsemi |
| Description | Driver 70A 1-OUT High Side/Low Side 36-Pin QFN EP T/R / IC MOSFET DRIVER QFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $1.381 | $1.246 | $1.124 | $1.10 | ||
Specifications
Data sheet
| Voltage - Supply: | 4.5 V ~ 5.5 V |
|---|---|
| Supplier Device Package: | 36-QFN (6x4) |
| Series: | - |
| Rise / Fall Time (Typ): | - |
| Packaging: | Cut Tape (CT) |
| Package / Case: | 36-TFQFN Exposed Pad |
| Other Names: | NCP81382MNTXGOSCT |
| Operating Temperature: | -40°C ~ 150°C (TJ) |
| Number of Drivers: | 1 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Manufacturer Standard Lead Time: | 32 Weeks |
| Logic Voltage - VIL, VIH: | - |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Input Type: | Non-Inverting |
| High Side Voltage - Max (Bootstrap): | 35V |
| Gate Type: | N-Channel MOSFET |
| Driven Configuration: | High-Side or Low-Side |
| Detailed Description: | High-Side or Low-Side Gate Driver IC Non-Inverting 36-QFN (6x4) |
| Current - Peak Output (Source, Sink): | - |
| Channel Type: | Synchronous |
| Email: | info@cjjhk.com |
Introduce
We can supply NCP81382MNTXG, use the request quote form to request NCP81382MNTXG pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NCP81382MNTXG.The price and lead time for NCP81382MNTXG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NCP81382MNTXG.We look forward to working with you to establish long-term relations of cooperation
