NCP5106AMNTWG
AMI Semiconductor / ON Semiconductor

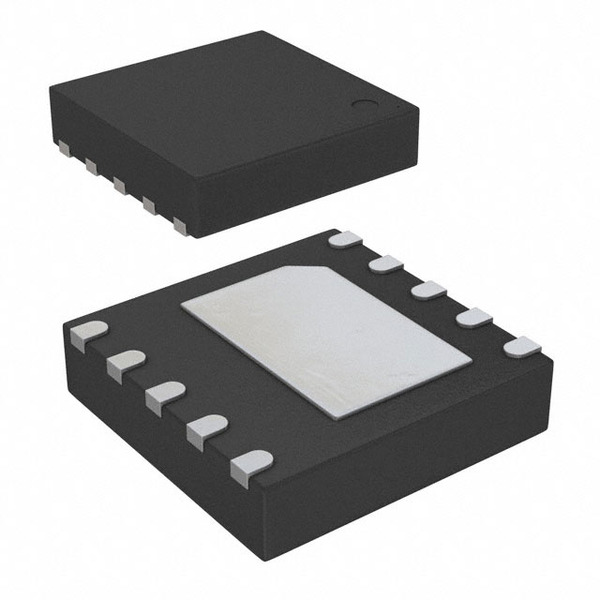

Images are for reference only.
See Product Specifications for product details.
Buy NCP5106AMNTWG with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy NCP5106AMNTWG with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | NCP5106AMNTWG |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC DRIVER HI/LO 600V 10DFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $1.16 | $1.033 | $0.806 | $0.665 | $0.525 | |
Specifications
Data sheet
| Voltage - Supply: | 10 V ~ 20 V |
|---|---|
| Supplier Device Package: | 10-DFN (4x4) |
| Series: | - |
| Rise / Fall Time (Typ): | 85ns, 35ns |
| Packaging: | Original-Reel® |
| Package / Case: | 10-VDFN Exposed Pad |
| Other Names: | NCP5106AMNTWGOSDKR |
| Operating Temperature: | -40°C ~ 125°C (TJ) |
| Number of Drivers: | 2 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 4 Weeks |
| Logic Voltage - VIL, VIH: | 0.8V, 2.3V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Input Type: | Non-Inverting |
| High Side Voltage - Max (Bootstrap): | 600V |
| Gate Type: | IGBT, N-Channel MOSFET |
| Driven Configuration: | Half-Bridge |
| Detailed Description: | Half-Bridge Gate Driver IC Non-Inverting 10-DFN (4x4) |
| Current - Peak Output (Source, Sink): | 250mA, 500mA |
| Channel Type: | Independent |
| Email: | info@cjjhk.com |
Introduce
We can supply NCP5106AMNTWG, use the request quote form to request NCP5106AMNTWG pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NCP5106AMNTWG.The price and lead time for NCP5106AMNTWG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NCP5106AMNTWG.We look forward to working with you to establish long-term relations of cooperation
