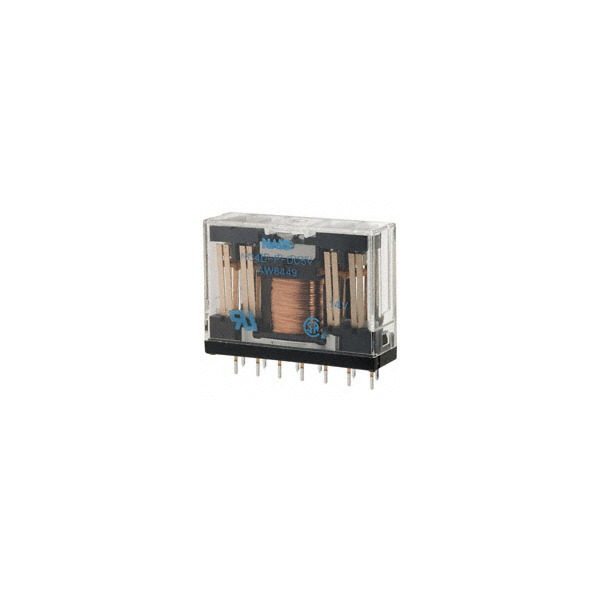

NC4D-P-DC5V
Panasonic
Images are for reference only.
See Product Specifications for product details.
Buy NC4D-P-DC5V with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy NC4D-P-DC5V with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | NC4D-P-DC5V |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GENERAL PURPOSE 4PDT 5A 5V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 20 pcs | 40 pcs | 60 pcs | |
|---|---|---|---|---|---|
| $15.73 | $13.98 | $13.281 | $12.582 | ||
| 100 pcs | 260 pcs | 500 pcs | 1000 pcs | ||
| $11.883 | $10.835 | $10.136 | $9.611 | ||
Specifications
Data sheet
| Turn On Voltage (Max): | 4 VDC |
|---|---|
| Turn Off Voltage (Min): | 0.5 VDC |
| Termination Style: | PC Pin |
| Switching Voltage: | 250VAC - Max |
| Series: | NC |
| Release Time: | 10ms |
| Relay Type: | General Purpose |
| Packaging: | Tube |
| Other Names: | 255-1998 NC4D-P-DC5V-ND NC4DPDC5V |
| Operating Temperature: | -40°C ~ 55°C |
| Operate Time: | 20ms |
| Mounting Type: | Through Hole |
| Manufacturer Standard Lead Time: | 10 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Features: | - |
| Detailed Description: | General Purpose Relay 4PDT (4 Form C) 5VDC Coil Through Hole |
| Contact Rating (Current): | 5A |
| Contact Material: | Silver Nickel (AgNi) |
| Contact Form: | 4PDT (4 Form C) |
| Coil Voltage: | 5VDC |
| Coil Type: | Non Latching |
| Coil Resistance: | 34.7 Ohms |
| Coil Power: | 720 mW |
| Coil Current: | 144mA |
| Email: | info@cjjhk.com |
Introduce
We can supply NC4D-P-DC5V, use the request quote form to request NC4D-P-DC5V pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NC4D-P-DC5V.The price and lead time for NC4D-P-DC5V depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NC4D-P-DC5V.We look forward to working with you to establish long-term relations of cooperation
