N3431-5202RB
3M

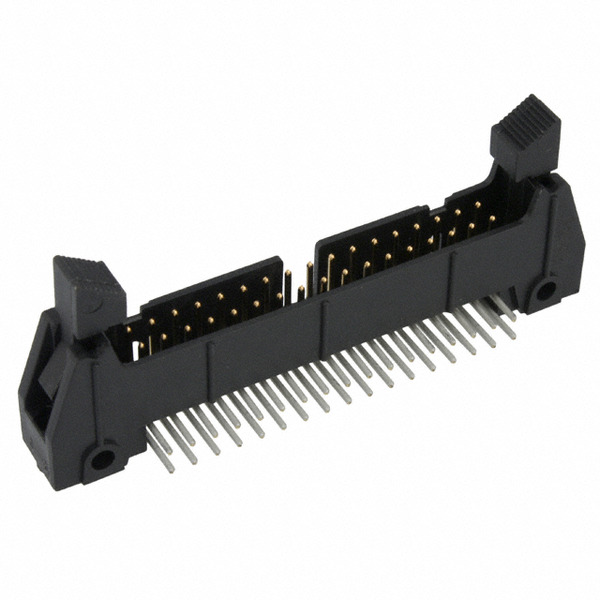

Images are for reference only.
See Product Specifications for product details.
Buy N3431-5202RB with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy N3431-5202RB with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | N3431-5202RB |
|---|---|
| Manufacturer | 3M |
| Description | CONN HEADER 34PS R/A SHORT LATCH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $4.16 | $3.994 | $3.328 | $2.829 | $2.413 | |
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Board or Cable |
| Shrouding: | Shrouded - 4 Wall |
| Series: | 3000 |
| Row Spacing - Mating: | 0.100" (2.54mm) |
| Pitch - Mating: | 0.100" (2.54mm) |
| Packaging: | Bulk |
| Overall Contact Length: | - |
| Other Names: | 00051111627730 00051111733745 05111162773 5111162773 51111627730 7000057659 80000911935 80400031813 MHR34S N3431-5502RB N3431-5502RB-ND N34315202RB |
| Operating Temperature: | -55°C ~ 105°C |
| Number of Rows: | 2 |
| Number of Positions Loaded: | All |
| Number of Positions: | 34 |
| Mounting Type: | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 9 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| Insulation Height: | 0.340" (8.64mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | Keying Slot, Mounting Flange |
| Fastening Type: | Latch Lock/Eject Hooks, Short |
| Detailed Description: | Connector Header Through Hole, Right Angle 34 position 0.100" (2.54mm) |
| Current Rating: | 1.75A |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Copper Alloy |
| Contact Length - Post: | 0.112" (2.84mm) |
| Contact Length - Mating: | 0.240" (6.10mm) |
| Contact Finish Thickness - Post: | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating: | 30.0µin (0.76µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Gold |
| Connector Type: | Header |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply N3431-5202RB, use the request quote form to request N3431-5202RB pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number N3431-5202RB.The price and lead time for N3431-5202RB depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# N3431-5202RB.We look forward to working with you to establish long-term relations of cooperation
