MUSB-05-S-AB-SM-A
Samtec, Inc.

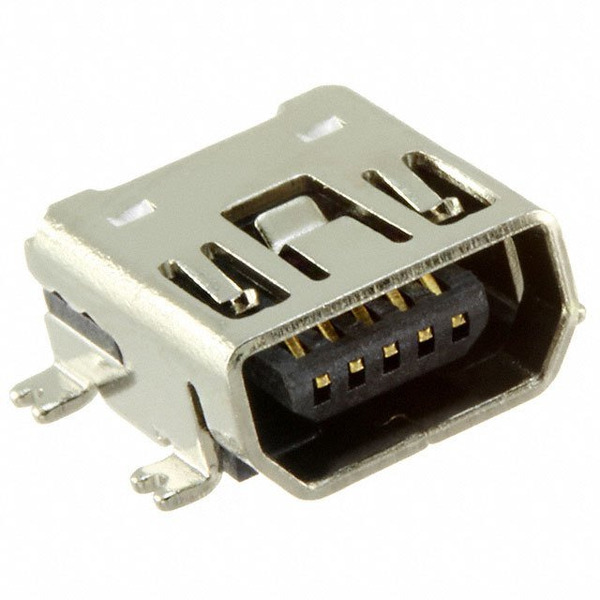

Images are for reference only.
See Product Specifications for product details.
Buy MUSB-05-S-AB-SM-A with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy MUSB-05-S-AB-SM-A with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | MUSB-05-S-AB-SM-A |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN RECEPT USB MINI AB SMD R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.49 | $1.348 | $1.265 | $1.21 | $1.155 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.045 | $0.963 | $0.825 | $0.77 | ||
Specifications
Data sheet
| Voltage - Rated: | 30V |
|---|---|
| Termination: | Solder |
| Specifications: | USB 2.0 |
| Shielding: | Unshielded |
| Shell/Shielding Material: | Copper Alloy |
| Series: | MUSB |
| Packaging: | Tray |
| Other Names: | MUSB-05-S-AB-SM-A-ND SAM8952 |
| Operating Temperature: | -50°C ~ 85°C |
| Number of Ports: | 1 |
| Number of Contacts: | 5 |
| Mounting Type: | Surface Mount, Right Angle |
| Mounting Feature: | Horizontal |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mating Cycles: | 1500 |
| Material Flammability Rating: | UL94 V-0 |
| Manufacturer Standard Lead Time: | 6 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Gender: | Receptacle |
| Features: | Board Guide, Solder Retention |
| Detailed Description: | USB - mini AB USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle |
| Current Rating: | - |
| Contact Finish: | Gold |
| Connector Type: | USB - mini AB |
| Email: | info@cjjhk.com |
Introduce
We can supply MUSB-05-S-AB-SM-A, use the request quote form to request MUSB-05-S-AB-SM-A pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MUSB-05-S-AB-SM-A.The price and lead time for MUSB-05-S-AB-SM-A depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MUSB-05-S-AB-SM-A.We look forward to working with you to establish long-term relations of cooperation
