MNG18-10R/LK
3M

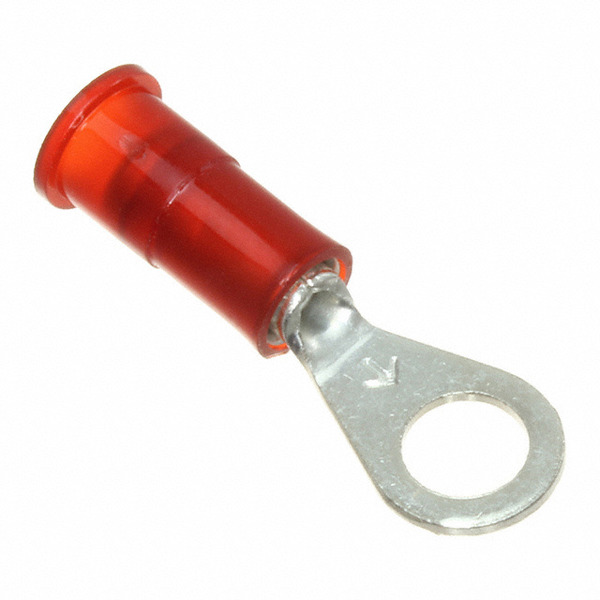

Images are for reference only.
See Product Specifications for product details.
Buy MNG18-10R/LK with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy MNG18-10R/LK with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | MNG18-10R/LK |
|---|---|
| Manufacturer | 3M |
| Description | CONN RING CIRC 18-22AWG #10 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.75 | $0.703 | $0.633 | $0.563 | $0.539 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.492 | $0.469 | $0.387 | $0.352 | ||
Specifications
Data sheet
| Wire Gauge: | 18-22 AWG |
|---|---|
| Width - Outer Edges: | 0.310" (7.87mm) |
| Thickness: | 0.030" (0.76mm) |
| Termination: | Crimp |
| Terminal Type: | Circular |
| Stud/Tab Size: | 10 Stud |
| Series: | Scotchlok™ |
| Packaging: | Bulk |
| Other Names: | 00054007010715 05400701071 3M161849 7100163929 80610035380 MNG18-10R/LK-ND |
| Mounting Type: | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Insulation: | Polyamide (PA), Nylon |
| Manufacturer Standard Lead Time: | 3 Weeks |
| Length - Overall: | 0.920" (23.37mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Diameter: | 0.145" (3.68mm) |
| Insulation: | Insulated |
| Features: | - |
| Detailed Description: | Ring Terminal Connector 10 Stud Circular 18-22 AWG Crimp |
| Contact Material: | Copper, ETP |
| Contact Finish: | Tin |
| Color: | Red |
| Email: | info@cjjhk.com |
Introduce
We can supply MNG18-10R/LK, use the request quote form to request MNG18-10R/LK pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MNG18-10R/LK.The price and lead time for MNG18-10R/LK depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MNG18-10R/LK.We look forward to working with you to establish long-term relations of cooperation
