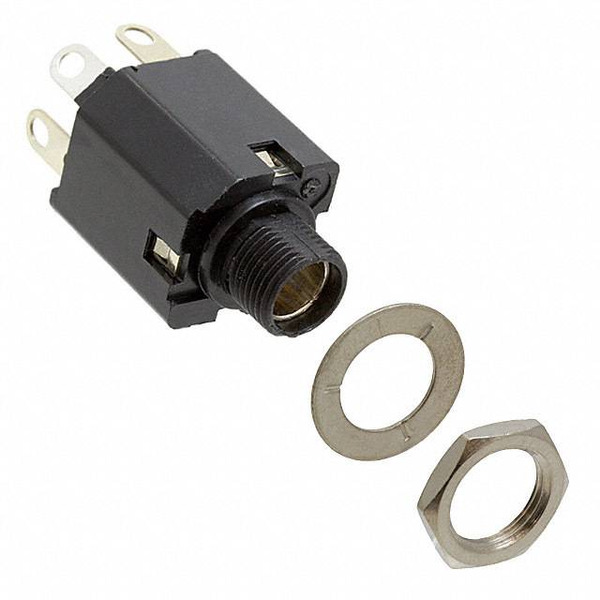

MN114BX
Conxall / Switchcraft
Images are for reference only.
See Product Specifications for product details.
Buy MN114BX with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy MN114BX with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | MN114BX |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN JACK STEREO 6.35MM PNL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $4.67 | $3.768 | $3.441 | $3.277 | $3.20 | |
Specifications
Data sheet
| Voltage - Rated: | - |
|---|---|
| Thread Size: | 3/8"-32 |
| Termination: | Solder Eyelet(s) |
| Signal Lines: | Stereo (3 Conductor, TRS) |
| Shielding: | Unshielded |
| Series: | Hi-D JAX® MN-11* |
| Panel Hole Size: | 0.375" (9.52mm) |
| Packaging: | Bulk |
| Other Names: | MN114BX-ND SC1566 |
| Operating Temperature: | - |
| Number of Positions/Contacts: | 3 Conductors, 5 Contacts |
| Mounting Type: | Panel Mount, Through Hole |
| Moisture Sensitivity Level (MSL): | Not Applicable |
| Mating Length/Depth: | - |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Internal Switch(s): | Two Switches |
| Insulation Color: | - |
| Industry Recognized Mating Diameter: | 6.35mm (0.250", 1/4") - Headphone |
| Includes: | 3 pcs - 1 Connector, 1 Nut, 1 Washer |
| Housing Material: | Thermoplastic |
| Gender: | Female |
| Features: | Mounting Hardware, Thread Lock |
| Detailed Description: | 6.35mm (0.250", 1/4") - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder Eyelet(s) |
| Contact Material - Plating: | Tin |
| Contact Material: | Brass |
| Connector Type: | Phone Jack |
| Cable Opening: | - |
| Body Material: | - |
| Body Color: | Black |
| Actual Diameter: | 0.250" (6.35mm) |
| Email: | info@cjjhk.com |
