MMIX1X200N60B3H1
IXYS Corporation

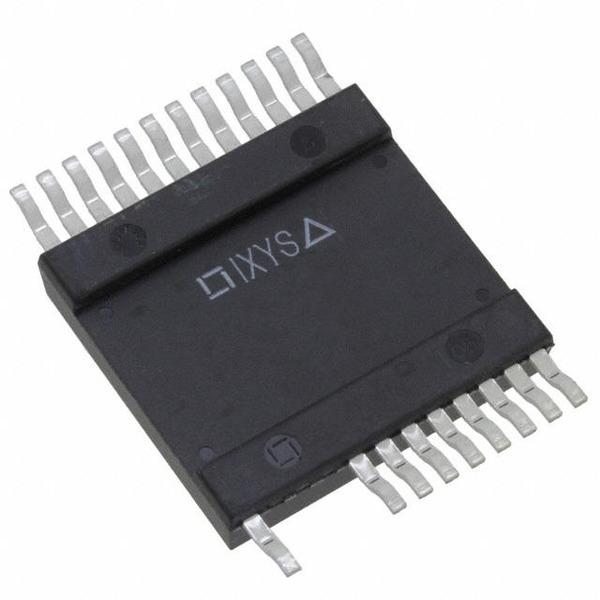

Images are for reference only.
See Product Specifications for product details.
Buy MMIX1X200N60B3H1 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy MMIX1X200N60B3H1 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | MMIX1X200N60B3H1 |
|---|---|
| Manufacturer | IXYS Corporation |
| Description | IGBT 600V 175A 520W SMPD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 20 pcs | 40 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $38.07 | $35.218 | $32.362 | $30.078 | ||
Specifications
Data sheet
| Voltage - Collector Emitter Breakdown (Max): | 600V |
|---|---|
| Vce(on) (Max) @ Vge, Ic: | 1.7V @ 15V, 100A |
| Test Condition: | 360V, 100A, 1 Ohm, 15V |
| Td (on/off) @ 25°C: | 48ns/160ns |
| Switching Energy: | 2.85mJ (on), 2.9mJ (off) |
| Supplier Device Package: | 24-SMPD |
| Series: | GenX3™, XPT™ |
| Reverse Recovery Time (trr): | 100ns |
| Power - Max: | 520W |
| Packaging: | Tube |
| Package / Case: | 24-PowerSMD, 21 Leads |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Input Type: | Standard |
| IGBT Type: | - |
| Gate Charge: | 315nC |
| Detailed Description: | IGBT 600V 175A 520W Surface Mount 24-SMPD |
| Current - Collector Pulsed (Icm): | 1000A |
| Current - Collector (Ic) (Max): | 175A |
| Base Part Number: | IXG*200N60 |
| Email: | info@cjjhk.com |
Introduce
We can supply MMIX1X200N60B3H1, use the request quote form to request MMIX1X200N60B3H1 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MMIX1X200N60B3H1.The price and lead time for MMIX1X200N60B3H1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MMIX1X200N60B3H1.We look forward to working with you to establish long-term relations of cooperation
