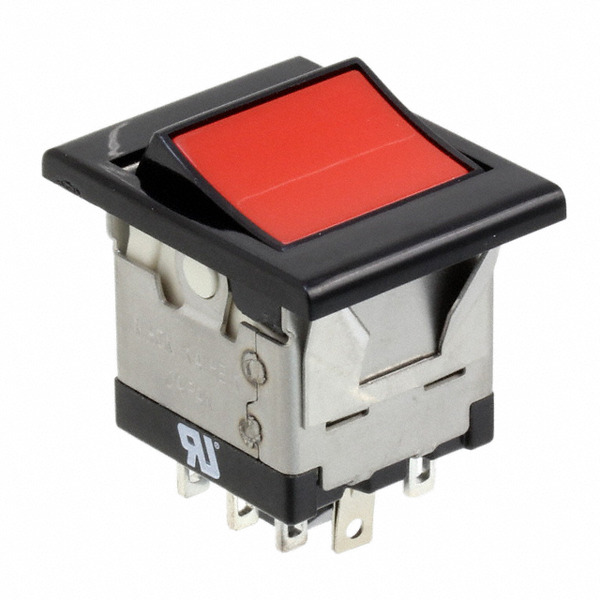

MLW3022-28-DC-1A
NKK Switches
Images are for reference only.
See Product Specifications for product details.
Buy MLW3022-28-DC-1A with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy MLW3022-28-DC-1A with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | MLW3022-28-DC-1A |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH ROCKER DPDT 5A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $13.86 | $12.474 | $12.128 | $11.781 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $11.435 | $11.088 | $9.702 | $9.182 | ||
Specifications
Data sheet
| Voltage Rating - DC: | 30V |
|---|---|
| Voltage Rating - AC: | 125V |
| Termination Style: | Solder Lug |
| Switch Function: | On-On |
| Series: | MLW |
| Panel Cutout Dimensions: | Rectangular - 18.70mm x 16.70mm |
| Packaging: | Bulk |
| Other Names: | MLW3022-28-DC-1A-RO MLW3022-28-DC-1A-RO-ND MLW302228DC1A |
| Operating Temperature: | -10°C ~ 50°C |
| Mounting Type: | Panel Mount, Snap-In |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mechanical Life: | 30,000 Cycles |
| Manufacturer Standard Lead Time: | 14 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Illumination Voltage (Nominal): | 28 VAC |
| Illumination Type, Color: | Incandescent, Red |
| Features: | Epoxy Sealed Terminals |
| Electrical Life: | 10,000 Cycles |
| Detailed Description: | Rocker Switch DPDT 5A (AC), 3A (DC) 125V Panel Mount, Snap-In |
| Current Rating: | 5A (AC), 3A (DC) |
| Color - Actuator/Cap: | Red |
| Circuit: | DPDT |
| Actuator Type: | Concave (Curved) - Illuminated |
| Actuator Marking: | No Marking |
| Email: | info@cjjhk.com |
Introduce
We can supply MLW3022-28-DC-1A, use the request quote form to request MLW3022-28-DC-1A pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MLW3022-28-DC-1A.The price and lead time for MLW3022-28-DC-1A depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MLW3022-28-DC-1A.We look forward to working with you to establish long-term relations of cooperation
