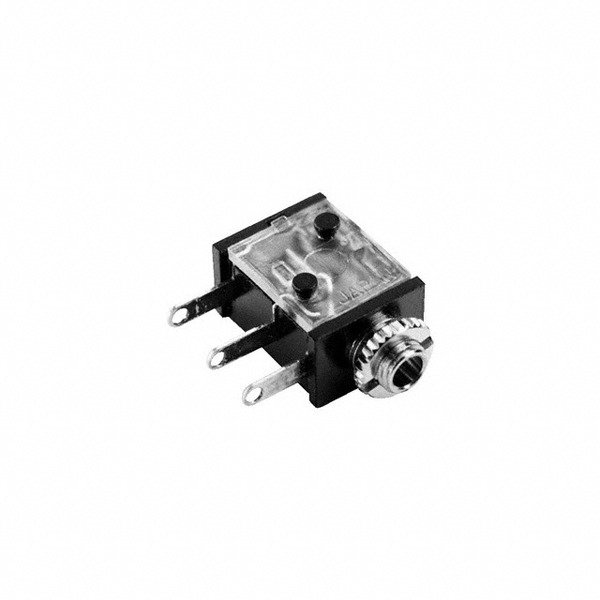

MJ-2502
CUI, Inc.
Images are for reference only.
See Product Specifications for product details.
Buy MJ-2502 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy MJ-2502 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | MJ-2502 |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN JACK MONO 2.5MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a Quote | ||||
Specifications
Data sheet
| Voltage - Rated: | 12VDC |
|---|---|
| Thread Size: | M4 |
| Termination: | Solder Eyelet(s) |
| Signal Lines: | Mono |
| Shielding: | Unshielded |
| Series: | - |
| Panel Hole Size: | 0.197" (5.00mm) |
| Packaging: | Bulk |
| Other Names: | CP-2502 |
| Operating Temperature: | -25°C ~ 85°C |
| Number of Positions/Contacts: | 2 Conductors, 3 Contacts |
| Mounting Type: | Panel Mount, Through Hole, Right Angle |
| Mating Length/Depth: | - |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Internal Switch(s): | Single Switch |
| Insulation Color: | - |
| Industry Recognized Mating Diameter: | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone |
| Includes: | 2 pcs - 1 Connector, 1 Nut |
| Housing Material: | Polybutylene Terephthalate (PBT) |
| Gender: | Female |
| Features: | Mounting Hardware, Thread Lock |
| Detailed Description: | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Jack Mono Connector Solder Eyelet(s) |
| Current Rating: | 1A |
| Contact Material - Plating: | Silver |
| Contact Material: | Brass |
| Connector Type: | Phone Jack |
| Cable Opening: | - |
| Body Material: | - |
| Body Color: | Black |
| Actual Diameter: | 0.102" (2.60mm) |
| Email: | info@cjjhk.com |
Introduce
We can supply MJ-2502, use the request quote form to request MJ-2502 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MJ-2502.The price and lead time for MJ-2502 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MJ-2502.We look forward to working with you to establish long-term relations of cooperation
