MET-39-T
Triad Magnetics

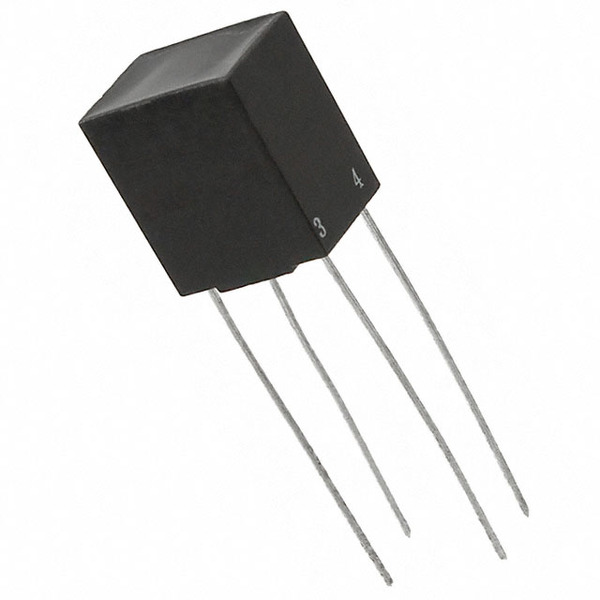

Images are for reference only.
See Product Specifications for product details.
Buy MET-39-T with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy MET-39-T with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | MET-39-T |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | TRANSFORMER 500:50 3.0MADC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $10.23 | $7.836 | $6.638 | $6.53 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $6.203 | $6.138 | $6.051 | $5.986 | ||
Specifications
Data sheet
| Weight: | - |
|---|---|
| Voltage - Isolation: | 1000VRMS @ 1 Second |
| Turns Ratio - Primary:Secondary: | 3.16:1 |
| Transformer Type: | Audio Coupling |
| Termination Style: | PC Pin |
| Size / Dimension: | 0.409" L x 0.310" W (10.40mm x 7.87mm) |
| Series: | MET |
| Return Loss: | - |
| Power Level: | 50mW |
| Packaging: | Bulk |
| Other Names: | 237-1466 MET-39-T-B MET-39-T-B-ND MET39T |
| Operating Temperature: | -20°C ~ 85°C |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 5 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insertion Loss: | - |
| Impedance - Secondary (Ohms): | 50 |
| Impedance - Primary (Ohms): | 500 |
| Height - Seated (Max): | 0.465" (11.80mm) |
| Frequency Response: | ±2dB |
| Frequency Range: | 300Hz ~ 100kHz |
| DC Resistance (DCR) - Secondary: | 8 Ohm |
| DC Resistance (DCR) - Primary: | 55 Ohm |
| Approvals: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply MET-39-T, use the request quote form to request MET-39-T pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MET-39-T.The price and lead time for MET-39-T depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MET-39-T.We look forward to working with you to establish long-term relations of cooperation
