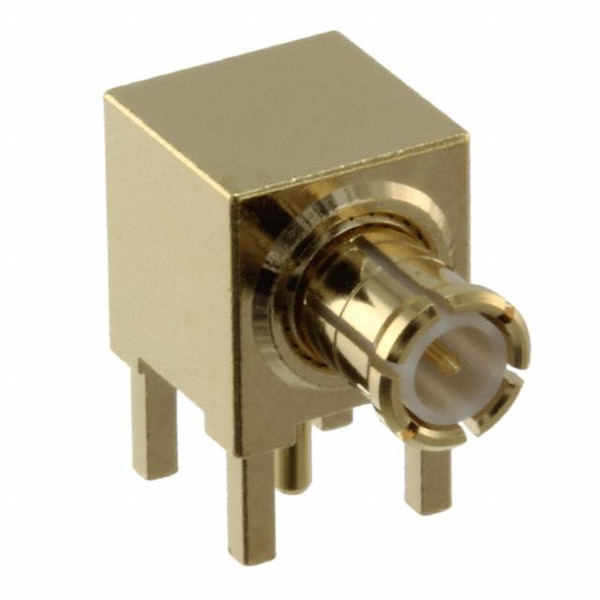

MCX-P-P-H-RA-TH1
Samtec, Inc.
Images are for reference only.
See Product Specifications for product details.
Buy MCX-P-P-H-RA-TH1 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy MCX-P-P-H-RA-TH1 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | MCX-P-P-H-RA-TH1 |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN MCX PLUG R/A 50 OHM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $5.70 | $5.472 | $5.016 | $4.788 | $4.56 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $3.99 | $3.876 | $3.306 | $3.078 | ||
Specifications
Data sheet
| Shield Termination: | Solder |
|---|---|
| Series: | - |
| Packaging: | - |
| Other Names: | SAM9697 |
| Operating Temperature: | -65°C ~ 125°C |
| Number of Ports: | 1 |
| Mounting Type: | Through Hole, Right Angle |
| Mounting Feature: | - |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mating Cycles: | - |
| Manufacturer Standard Lead Time: | 3 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insertion Loss: | - |
| Ingress Protection: | - |
| Includes: | - |
| Impedance: | 50 Ohm |
| Housing Color: | Gold |
| Frequency - Max: | 6GHz |
| Features: | - |
| Fastening Type: | Snap-On |
| Dielectric Material: | Polytetrafluoroethylene (PTFE) |
| Detailed Description: | MCX Connector Plug, Male Pin 50 Ohm Through Hole, Right Angle Solder |
| Contact Termination: | Solder |
| Connector Type: | Plug, Male Pin |
| Connector Style: | MCX |
| Center Contact Plating: | Gold |
| Center Contact Material: | Brass |
| Cable Group: | - |
| Body Material: | Copper Alloy |
| Body Finish: | Gold |
| Email: | info@cjjhk.com |
Introduce
We can supply MCX-P-P-H-RA-TH1, use the request quote form to request MCX-P-P-H-RA-TH1 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MCX-P-P-H-RA-TH1.The price and lead time for MCX-P-P-H-RA-TH1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MCX-P-P-H-RA-TH1.We look forward to working with you to establish long-term relations of cooperation
