MC33363BDWG
AMI Semiconductor / ON Semiconductor

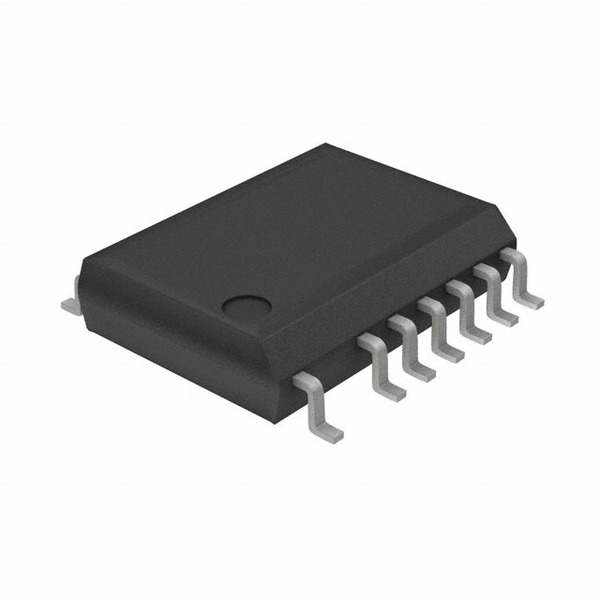

Images are for reference only.
See Product Specifications for product details.
Buy MC33363BDWG with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy MC33363BDWG with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | MC33363BDWG |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC OFFLINE SWIT PWM HV 16SOIC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a Quote | ||||
Specifications
Data sheet
| Voltage - Supply (Vcc/Vdd): | 9.5 V ~ 40 V |
|---|---|
| Voltage - Start Up: | 15.2V |
| Voltage - Breakdown: | 700V |
| Topology: | Flyback, Forward |
| Supplier Device Package: | 16-SOIC |
| Series: | - |
| Packaging: | Tube |
| Package / Case: | 16-SOIC (0.295", 7.50mm Width), 13 Leads |
| Output Isolation: | Isolated |
| Other Names: | MC33363BDWG-ND MC33363BDWGOS |
| Operating Temperature: | -25°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Internal Switch(s): | Yes |
| Frequency - Switching: | 67.5kHz ~ 285kHz |
| Fault Protection: | Current Limiting, Over Temperature, Over Voltage |
| Duty Cycle: | 50% |
| Detailed Description: | Converter Offline Flyback, Forward Topology 67.5kHz ~ 285kHz 16-SOIC |
| Control Features: | Frequency Control |
| Base Part Number: | MC33363B |
| Email: | info@cjjhk.com |
Introduce
We can supply MC33363BDWG, use the request quote form to request MC33363BDWG pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MC33363BDWG.The price and lead time for MC33363BDWG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MC33363BDWG.We look forward to working with you to establish long-term relations of cooperation
