MC10XS4200FK
NXP Semiconductors / Freescale

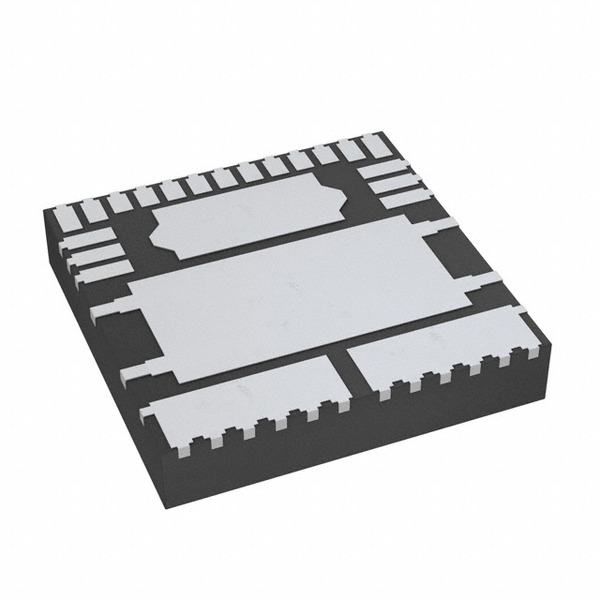

Images are for reference only.
See Product Specifications for product details.
Buy MC10XS4200FK with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy MC10XS4200FK with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | MC10XS4200FK |
|---|---|
| Manufacturer | NXP Semiconductors |
| Description | High-Side Switch, 24V, Dual 10mOhms, PQFN 24, Tray |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $9.662 | $8.721 | $7.866 | $7.695 | ||
Specifications
Data sheet
| Voltage - Supply (Vcc/Vdd): | 3 V ~ 5.5 V |
|---|---|
| Voltage - Load: | 8 V ~ 36 V |
| Switch Type: | General Purpose |
| Supplier Device Package: | 23-PQFN (12x12) |
| Series: | - |
| Rds On (Typ): | 10 mOhm (Max) |
| Ratio - Input:Output: | 1:1 |
| Packaging: | Tray |
| Package / Case: | 23-PowerQFN |
| Output Type: | N-Channel |
| Output Configuration: | High Side |
| Other Names: | 934070486557 |
| Operating Temperature: | -40°C ~ 125°C (TA) |
| Number of Outputs: | 2 |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Interface: | SPI |
| Input Type: | - |
| Features: | Internal PWM, Slew Rate Controlled, Watchdog Timer |
| Fault Protection: | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO |
| Current - Output (Max): | 6A |
| Base Part Number: | MC10XS4200 |
| Email: | info@cjjhk.com |
Introduce
We can supply MC10XS4200FK, use the request quote form to request MC10XS4200FK pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MC10XS4200FK.The price and lead time for MC10XS4200FK depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MC10XS4200FK.We look forward to working with you to establish long-term relations of cooperation
