MAF94301
Laird Technologies - Antennas

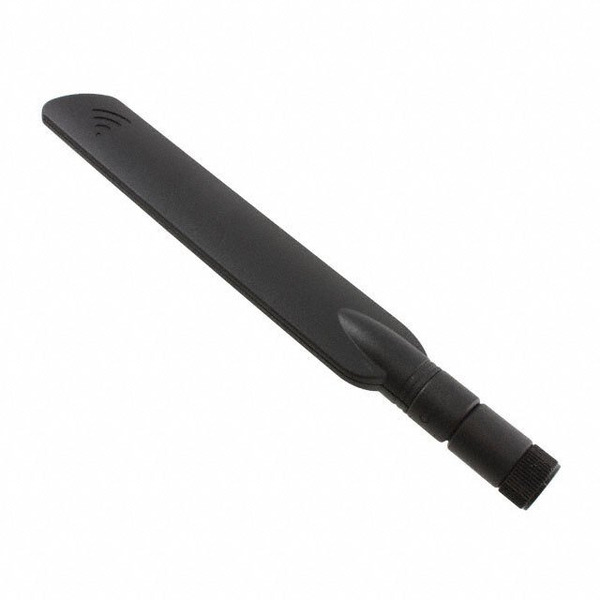

Images are for reference only.
See Product Specifications for product details.
Buy MAF94301 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy MAF94301 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | MAF94301 |
|---|---|
| Manufacturer | Laird Technologies - Antennas |
| Description | RF ANT 850/900MHZ BLADE RP-SMA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $10.58 | $9.518 | $8.672 | $7.826 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $7.191 | $6.557 | $5.711 | |||
Specifications
Data sheet
| VSWR: | 2.5 |
|---|---|
| Termination: | Connector, RP-SMA Male |
| Series: | Heptaband™ |
| Return Loss: | - |
| Power - Max: | 10W |
| Packaging: | Bulk |
| Other Names: | 994-1036 |
| Number of Bands: | 7 |
| Mounting Type: | Connector Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 6 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Height (Max): | 6.339" (161.00mm) |
| Gain: | 3dBi |
| Frequency Range: | 815MHz ~ 960MHz, 1.427GHz ~ 1.511GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz |
| Frequency Group: | Wide Band |
| Frequency (Center/Band): | 850MHz, 900MHz, 1.47GHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz |
| Features: | - |
| Detailed Description: | 850MHz, 900MHz, 1.47GHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz AWS, GPS, GSM, Wi-Fi, WLAN Blade, Tilt RF Antenna 815MHz ~ 960MHz, 1.427GHz ~ 1.511GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz 3dBi Connector, RP-SMA Male Connector Mount |
| Applications: | AWS, GPS, GSM, Wi-Fi, WLAN |
| Antenna Type: | Blade, Tilt |
| Email: | info@cjjhk.com |
Introduce
We can supply MAF94301, use the request quote form to request MAF94301 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MAF94301.The price and lead time for MAF94301 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MAF94301.We look forward to working with you to establish long-term relations of cooperation
