MA05L1NZGD
C&K

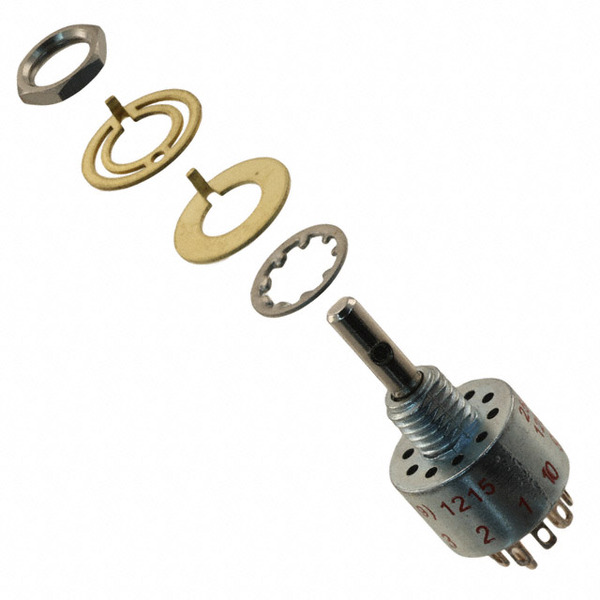

Images are for reference only.
See Product Specifications for product details.
Buy MA05L1NZGD with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy MA05L1NZGD with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | MA05L1NZGD |
|---|---|
| Manufacturer | C&K |
| Description | SWITCH ROTARY 5POS 250MA 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $13.83 | $12.906 | $12.721 | $12.537 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $11.062 | $10.693 | $10.509 | |||
Specifications
Data sheet
| Voltage Rating - DC: | 28V |
|---|---|
| Voltage Rating - AC: | 125V |
| Termination Style: | Solder Lug |
| Series: | M |
| Panel Cutout Dimensions: | Circular - 6.60mm Dia |
| Other Names: | *MA05L1NZGD CKN10654 MA05L1NZGD-ND |
| Operating Force: | 2.880 ~ 5.041gfm |
| Number of Positions: | 5 |
| Number of Poles per Deck: | 1 |
| Number of Decks: | 1 |
| Mounting Type: | Panel Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 13 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Index Stops: | Fixed |
| Features: | - |
| Detailed Description: | Rotary Switch 5 Position SP5T 250mA (AC/DC) 125VAC Panel Mount |
| Depth Behind Panel: | 14.86mm |
| Current Rating: | 250mA (AC/DC) |
| Contact Timing: | Non-Shorting (BBM) |
| Contact Material: | Copper Alloy |
| Contact Finish: | Gold |
| Circuit per Deck: | SP5T |
| Angle of Throw: | 36° |
| Actuator Type: | Flatted (3.17mm Dia) |
| Actuator Length: | 10.16mm |
| Email: | info@cjjhk.com |
Introduce
We can supply MA05L1NZGD, use the request quote form to request MA05L1NZGD pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MA05L1NZGD.The price and lead time for MA05L1NZGD depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MA05L1NZGD.We look forward to working with you to establish long-term relations of cooperation
