M8340102K1002GBD04
Dale / Vishay

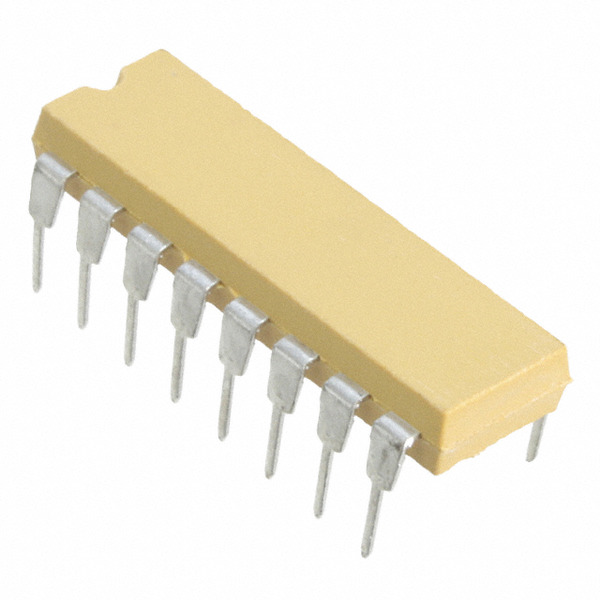

Images are for reference only.
See Product Specifications for product details.
Buy M8340102K1002GBD04 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy M8340102K1002GBD04 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | M8340102K1002GBD04 |
|---|---|
| Manufacturer | Dale / Vishay |
| Description | RES ARRAY 15 RES 10K OHM 16DIP |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $10.15 | $9.518 | $8.883 | $7.826 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $6.768 | $6.134 | $5.711 | $5.288 | ||
Specifications
Data sheet
| Tolerance: | ±2% |
|---|---|
| Temperature Coefficient: | ±100ppm/°C |
| Supplier Device Package: | 16-DIP |
| Size / Dimension: | 0.850" L x 0.250" W (21.59mm x 6.35mm) |
| Series: | Military, MIL-PRF-83401/02, RZ020 |
| Resistor-Ratio-Drift: | - |
| Resistor Matching Ratio: | - |
| Resistance (Ohms): | 10k |
| Power Per Element: | 100mW |
| Packaging: | Tube |
| Package / Case: | 16-DIP (0.300", 7.62mm) |
| Other Names: | 1135-1066-5 1135-1066-5-MIL |
| Operating Temperature: | -55°C ~ 125°C |
| Number of Resistors: | 15 |
| Number of Pins: | 16 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 17 Weeks |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Height - Seated (Max): | 0.155" (3.94mm) |
| Detailed Description: | 10k Ohm ±2% 100mW Power Per Element Bussed 15 Resistor Network/Array ±100ppm/°C 16-DIP (0.300", 7.62mm) |
| Circuit Type: | Bussed |
| Applications: | Military |
| Email: | info@cjjhk.com |
Introduce
We can supply M8340102K1002GBD04, use the request quote form to request M8340102K1002GBD04 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number M8340102K1002GBD04.The price and lead time for M8340102K1002GBD04 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# M8340102K1002GBD04.We look forward to working with you to establish long-term relations of cooperation
