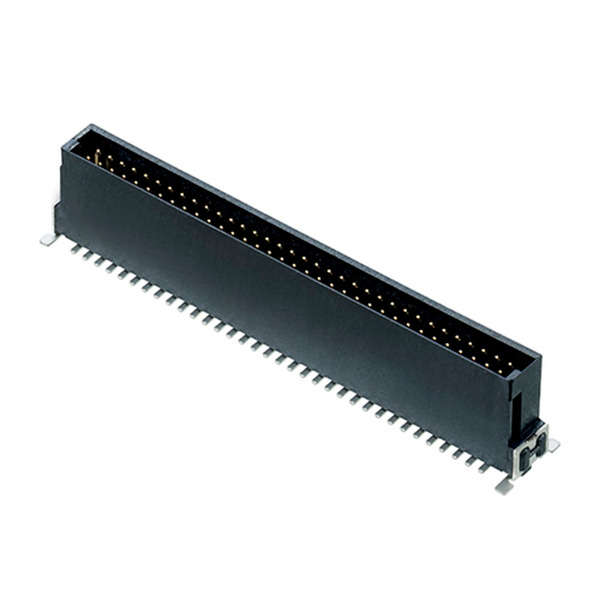

M55-7026842R
Harwin
Images are for reference only.
See Product Specifications for product details.
Buy M55-7026842R with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy M55-7026842R with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | M55-7026842R |
|---|---|
| Manufacturer | Harwin |
| Description | CONN HDR 1.27MM DUAL SMD 64POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 300 pcs | 600 pcs | 900 pcs | ||
|---|---|---|---|---|---|
| $1.402 | $1.292 | $1.255 | |||
| 1500 pcs | 3000 pcs | 7500 pcs | |||
| $1.07 | $1.033 | $0.982 | |||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Board |
| Shrouding: | Shrouded - 4 Wall |
| Series: | Archer Kontrol |
| Row Spacing - Mating: | 0.050" (1.27mm) |
| Pitch - Mating: | 0.050" (1.27mm) |
| Packaging: | Tape & Reel (TR) |
| Overall Contact Length: | - |
| Other Names: | 952-3889-2 |
| Operating Temperature: | -55°C ~ 125°C |
| Number of Rows: | 2 |
| Number of Positions Loaded: | All |
| Number of Positions: | 68 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | 11.1mm, 13.9mm, 18.5mm |
| Manufacturer Standard Lead Time: | 10 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Liquid Crystal Polymer (LCP) |
| Insulation Height: | 0.388" (9.86mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | Board Guide, Pick and Place, Solder Retention |
| Fastening Type: | Latch Lock |
| Detailed Description: | Connector Header Surface Mount 68 position 0.050" (1.27mm) |
| Current Rating: | 1.2A |
| Contact Type: | Male Pin |
| Contact Shape: | Rectangular |
| Contact Material: | Phosphor Bronze |
| Contact Length - Post: | - |
| Contact Length - Mating: | 0.157" (4.00mm) |
| Contact Finish Thickness - Post: | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating: | 1.00µin (0.025µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Gold |
| Connector Type: | Header |
| Applications: | Automotive, General Purpose, Industrial |
| Email: | info@cjjhk.com |
Introduce
We can supply M55-7026842R, use the request quote form to request M55-7026842R pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number M55-7026842R.The price and lead time for M55-7026842R depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# M55-7026842R.We look forward to working with you to establish long-term relations of cooperation
