M52-040000P1045
Harwin

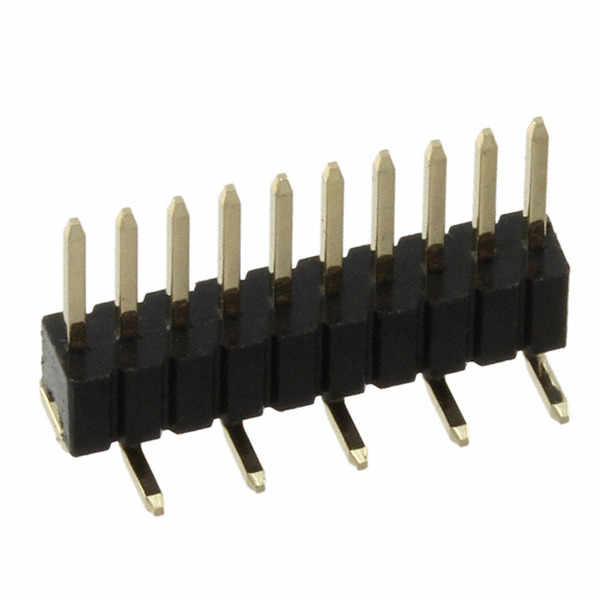

Images are for reference only.
See Product Specifications for product details.
Buy M52-040000P1045 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy M52-040000P1045 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | M52-040000P1045 |
|---|---|
| Manufacturer | Harwin |
| Description | 10 SIL SMT MALE PIN HDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $1.40 | $1.267 | $1.086 | $0.905 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.776 | $0.688 | $0.672 | |||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Board |
| Shrouding: | Unshrouded |
| Series: | Archer M52 |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.050" (1.27mm) |
| Packaging: | Bulk |
| Overall Contact Length: | - |
| Other Names: | 952-3505 |
| Operating Temperature: | -40°C ~ 105°C |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 10 |
| Mounting Type: | Surface Mount |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | 8.37mm, 9.77mm, 12.27mm |
| Manufacturer Standard Lead Time: | 7 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polyamide (PA6T), Nylon 6T |
| Insulation Height: | 0.098" (2.50mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | - |
| Fastening Type: | Push-Pull |
| Detailed Description: | Connector Header Surface Mount 10 position 0.050" (1.27mm) |
| Current Rating: | 1A |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Brass |
| Contact Length - Post: | - |
| Contact Length - Mating: | 0.157" (4.00mm) |
| Contact Finish Thickness - Post: | - |
| Contact Finish Thickness - Mating: | Flash |
| Contact Finish - Post: | - |
| Contact Finish - Mating: | Gold |
| Connector Type: | Header |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply M52-040000P1045, use the request quote form to request M52-040000P1045 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number M52-040000P1045.The price and lead time for M52-040000P1045 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# M52-040000P1045.We look forward to working with you to establish long-term relations of cooperation
