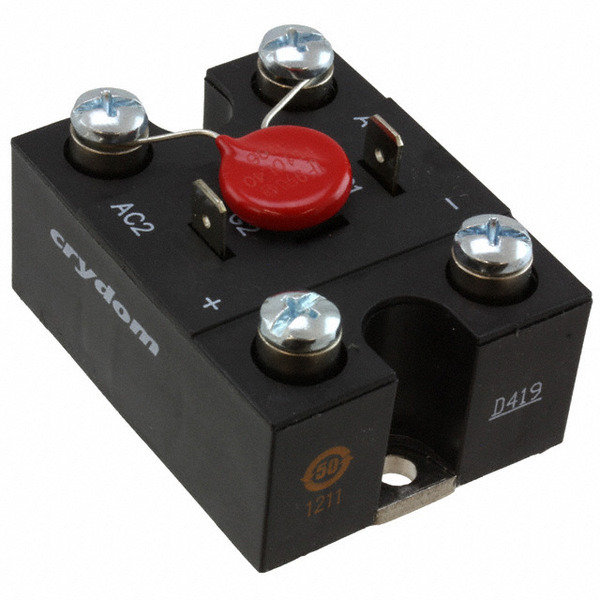

M5010015V
Crydom
Images are for reference only.
See Product Specifications for product details.
Buy M5010015V with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy M5010015V with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | M5010015V |
|---|---|
| Manufacturer | Crydom |
| Description | MODULE POWER 100A 1200V SCR CC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | ||
|---|---|---|---|---|---|
| $172.17 | $164.081 | $156.541 | |||
Specifications
Data sheet
| Voltage - Off State: | 1.2kV |
|---|---|
| Voltage - Gate Trigger (Vgt) (Max): | 3V |
| Structure: | Bridge, Single Phase - SCRs/Diodes (Layout 1) |
| Series: | - |
| Packaging: | Bulk |
| Package / Case: | Module |
| Other Names: | CC2022 M5010015V-ND |
| Operating Temperature: | -40°C ~ 125°C (TJ) |
| Number of SCRs, Diodes: | 2 SCRs, 2 Diodes |
| Mounting Type: | Chassis Mount |
| Manufacturer Standard Lead Time: | 6 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Detailed Description: | SCR Module 1.2kV Bridge, Single Phase - SCRs/Diodes (Layout 1) Chassis Mount Module |
| Current - Non Rep. Surge 50, 60Hz (Itsm): | 1500A @ 60Hz |
| Current - Gate Trigger (Igt) (Max): | 150mA |
| Email: | info@cjjhk.com |
Introduce
We can supply M5010015V, use the request quote form to request M5010015V pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number M5010015V.The price and lead time for M5010015V depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# M5010015V.We look forward to working with you to establish long-term relations of cooperation
