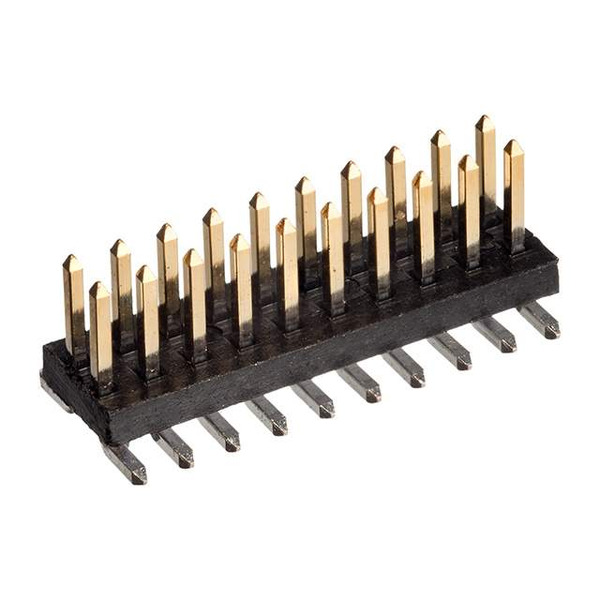

M50-3611042R
Harwin
Images are for reference only.
See Product Specifications for product details.
Buy M50-3611042R with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy M50-3611042R with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | M50-3611042R |
|---|---|
| Manufacturer | Harwin |
| Description | CONN HDR 1.27MM SMD AU 20POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 700 pcs | 1400 pcs | 2100 pcs | 3500 pcs | 4900 pcs |
|---|---|---|---|---|---|
| $1.719 | $1.466 | $1.415 | $1.365 | $1.314 | |
Specifications
Data sheet
| Voltage Rating: | 250V |
|---|---|
| Termination: | Solder |
| Style: | Board to Board or Cable |
| Shrouding: | Unshrouded |
| Series: | Archer M50 |
| Row Spacing - Mating: | 0.050" (1.27mm) |
| Pitch - Mating: | 0.050" (1.27mm) |
| Packaging: | Tape & Reel (TR) |
| Overall Contact Length: | - |
| Other Names: | 952-3094-2 |
| Operating Temperature: | -55°C ~ 105°C |
| Number of Rows: | 2 |
| Number of Positions Loaded: | All |
| Number of Positions: | 20 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 7 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Thermoplastic |
| Insulation Height: | 0.039" (1.00mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | Board Guide, Pick and Place |
| Fastening Type: | Push-Pull |
| Detailed Description: | Connector Header Surface Mount 20 position 0.050" (1.27mm) |
| Current Rating: | 1A |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Brass |
| Contact Length - Post: | - |
| Contact Length - Mating: | 0.118" (3.00mm) |
| Contact Finish Thickness - Post: | 80.0µin (2.03µm) |
| Contact Finish Thickness - Mating: | 1.00µin (0.025µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Gold |
| Connector Type: | Header |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply M50-3611042R, use the request quote form to request M50-3611042R pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number M50-3611042R.The price and lead time for M50-3611042R depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# M50-3611042R.We look forward to working with you to establish long-term relations of cooperation
