M50-3551342
Harwin

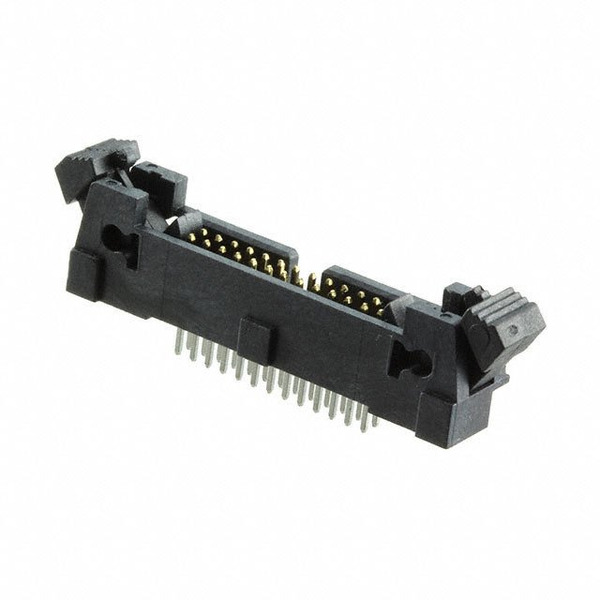

Images are for reference only.
See Product Specifications for product details.
Buy M50-3551342 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy M50-3551342 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | M50-3551342 |
|---|---|
| Manufacturer | Harwin |
| Description | CONN HDR 26POS 1.27MM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 18 pcs | 108 pcs | ||
|---|---|---|---|---|---|
| $2.70 | $2.592 | $2.16 | |||
| 504 pcs | 1008 pcs | 5004 pcs | |||
| $1.836 | $1.566 | $1.404 | |||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Board or Cable |
| Shrouding: | Shrouded - 4 Wall |
| Series: | Archer M50 |
| Row Spacing - Mating: | 0.050" (1.27mm) |
| Pitch - Mating: | 0.050" (1.27mm) |
| Packaging: | Tube |
| Overall Contact Length: | 0.351" (8.92mm) |
| Other Names: | 952-2646 M50-3551342-ND |
| Operating Temperature: | -55°C ~ 125°C |
| Number of Rows: | 2 |
| Number of Positions Loaded: | All |
| Number of Positions: | 26 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | 11.6mm |
| Manufacturer Standard Lead Time: | 7 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height: | 0.325" (8.25mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | Keying Slot |
| Fastening Type: | Latch Lock/Eject Hooks |
| Detailed Description: | Connector Header Through Hole 26 position 0.050" (1.27mm) |
| Current Rating: | 1.75A per Contact |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Brass |
| Contact Length - Post: | 0.107" (2.71mm) |
| Contact Length - Mating: | 0.120" (3.05mm) |
| Contact Finish Thickness - Post: | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating: | Flash |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Gold |
| Connector Type: | Header |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply M50-3551342, use the request quote form to request M50-3551342 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number M50-3551342.The price and lead time for M50-3551342 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# M50-3551342.We look forward to working with you to establish long-term relations of cooperation
