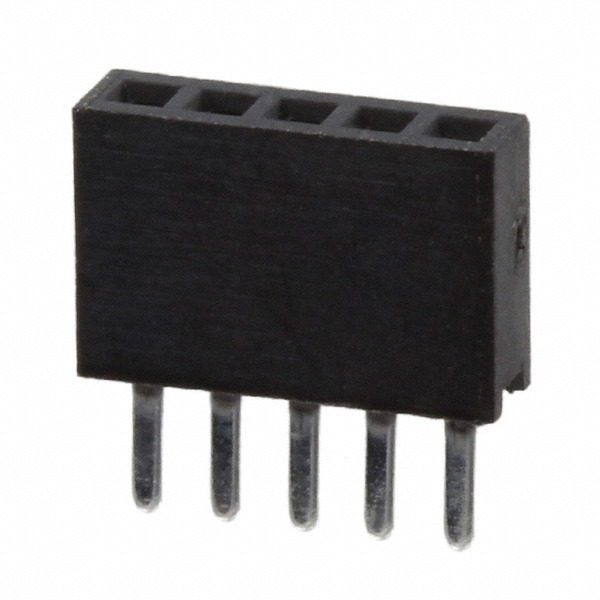

M50-3030542
Harwin
Images are for reference only.
See Product Specifications for product details.
Buy M50-3030542 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy M50-3030542 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | M50-3030542 |
|---|---|
| Manufacturer | Harwin |
| Description | CONN RCPT 1.27MM T/H AU 5POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 85 pcs | 170 pcs | 510 pcs | |
|---|---|---|---|---|---|
| $0.80 | $0.632 | $0.605 | $0.495 | ||
| 1020 pcs | 5015 pcs | 10030 pcs | |||
| $0.44 | $0.385 | $0.366 | |||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Board |
| Series: | Archer M50 |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.050" (1.27mm) |
| Packaging: | Tube |
| Other Names: | 952-3577 |
| Operating Temperature: | -40°C ~ 105°C |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 5 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | 5.4mm, 6.08mm, 9.37mm |
| Manufacturer Standard Lead Time: | 7 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polyamide (PA6T), Nylon 6T |
| Insulation Height: | 0.173" (4.40mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | - |
| Fastening Type: | Push-Pull |
| Detailed Description: | 5 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold |
| Current Rating: | 1A |
| Contact Type: | Female Socket |
| Contact Shape: | Square |
| Contact Material: | Phosphor Bronze |
| Contact Length - Post: | 0.094" (2.40mm) |
| Contact Finish Thickness - Post: | - |
| Contact Finish Thickness - Mating: | - |
| Contact Finish - Post: | - |
| Contact Finish - Mating: | Gold |
| Connector Type: | Receptacle |
| Applications: | General Purpose, Medical, Telecommunications |
| Email: | info@cjjhk.com |
Introduce
We can supply M50-3030542, use the request quote form to request M50-3030542 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number M50-3030542.The price and lead time for M50-3030542 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# M50-3030542.We look forward to working with you to establish long-term relations of cooperation
