M300-MV10345M1
Harwin

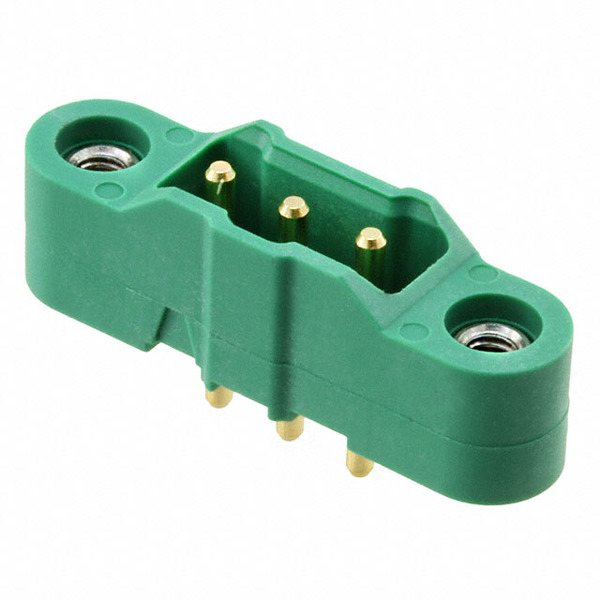

Images are for reference only.
See Product Specifications for product details.
Buy M300-MV10345M1 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy M300-MV10345M1 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | M300-MV10345M1 |
|---|---|
| Manufacturer | Harwin |
| Description | CONN HDR 3MM VERT PCB 3POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 12 pcs | 108 pcs | 504 pcs | 1008 pcs |
|---|---|---|---|---|---|
| $5.00 | $4.795 | $3.996 | $3.397 | $2.897 | |
Specifications
Data sheet
| Voltage Rating: | 600VAC/DC |
|---|---|
| Termination: | Solder |
| Style: | Board to Board or Cable |
| Shrouding: | Shrouded - 4 Wall |
| Series: | M300 |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.118" (3.00mm) |
| Packaging: | Tube |
| Overall Contact Length: | - |
| Other Names: | 952-2522-5 |
| Operating Temperature: | -65°C ~ 175°C |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 3 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | 8.90mm, 14.10mm, 14.90mm, 19.75mm |
| Manufacturer Standard Lead Time: | 7 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Insulation Height: | 0.276" (7.00mm) |
| Insulation Color: | Green |
| Ingress Protection: | - |
| Features: | Mating Flange |
| Fastening Type: | Threaded |
| Detailed Description: | Connector Header Through Hole 3 position 0.118" (3.00mm) |
| Current Rating: | 10A |
| Contact Type: | Male Pin, Power |
| Contact Shape: | Circular |
| Contact Material: | Brass |
| Contact Length - Post: | 0.126" (3.20mm) |
| Contact Length - Mating: | - |
| Contact Finish Thickness - Post: | - |
| Contact Finish Thickness - Mating: | 29.5µin (0.75µm) |
| Contact Finish - Post: | - |
| Contact Finish - Mating: | Gold |
| Connector Type: | Header |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply M300-MV10345M1, use the request quote form to request M300-MV10345M1 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number M300-MV10345M1.The price and lead time for M300-MV10345M1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# M300-MV10345M1.We look forward to working with you to establish long-term relations of cooperation
