M22-7142542
Harwin

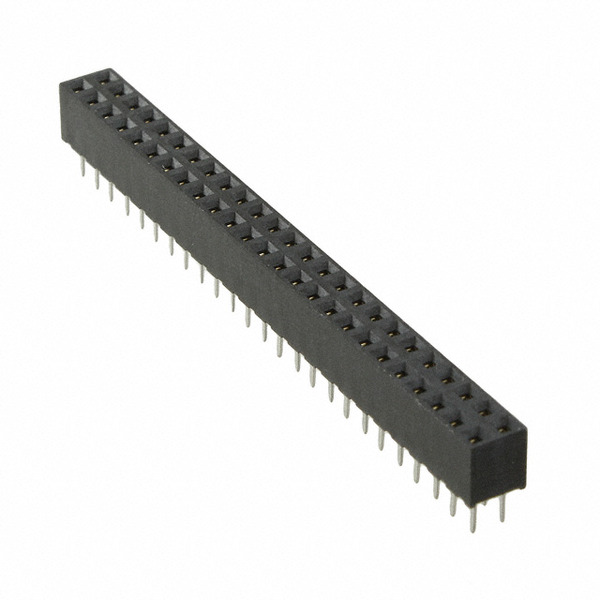

Images are for reference only.
See Product Specifications for product details.
Buy M22-7142542 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy M22-7142542 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | M22-7142542 |
|---|---|
| Manufacturer | Harwin |
| Description | 2X25 POS DIL VERT SOCKET |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $6.16 | $5.914 | $4.928 | $4.189 | $3.573 | |
Specifications
Data sheet
| Voltage Rating: | 500VAC |
|---|---|
| Termination: | Solder |
| Style: | Board to Board or Cable |
| Series: | M22 |
| Row Spacing - Mating: | 0.079" (2.00mm) |
| Pitch - Mating: | 0.079" (2.00mm) |
| Packaging: | Tube |
| Other Names: | 952-2346 M227142542 |
| Operating Temperature: | -40°C ~ 105°C |
| Number of Rows: | 2 |
| Number of Positions Loaded: | All |
| Number of Positions: | 50 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | 5.8mm, 6.55mm, 6.8mm |
| Manufacturer Standard Lead Time: | 7 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Liquid Crystal Polymer (LCP) |
| Insulation Height: | 0.173" (4.40mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | - |
| Fastening Type: | Push-Pull |
| Detailed Description: | 50 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold |
| Current Rating: | 2A |
| Contact Type: | Female Socket |
| Contact Shape: | Square |
| Contact Material: | Phosphor Bronze |
| Contact Length - Post: | 0.094" (2.40mm) |
| Contact Finish Thickness - Post: | - |
| Contact Finish Thickness - Mating: | - |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Gold |
| Connector Type: | Receptacle |
| Applications: | General Purpose, Industrial, Telecommunications |
| Email: | info@cjjhk.com |
Introduce
We can supply M22-7142542, use the request quote form to request M22-7142542 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number M22-7142542.The price and lead time for M22-7142542 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# M22-7142542.We look forward to working with you to establish long-term relations of cooperation
