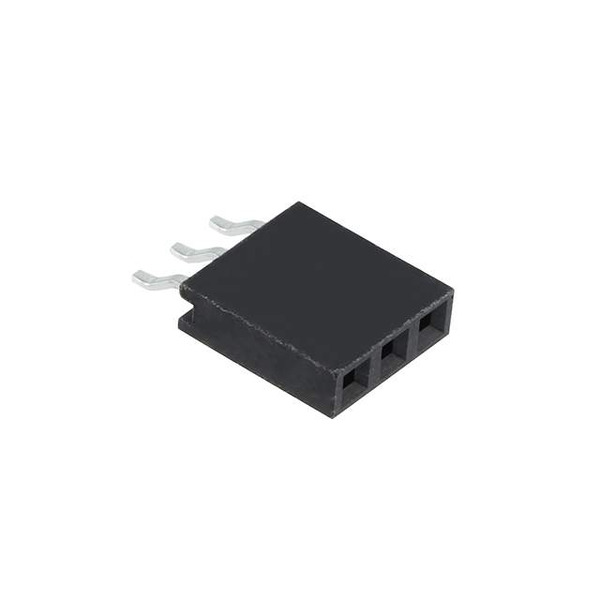

M20-7910342R
Harwin
Images are for reference only.
See Product Specifications for product details.
Buy M20-7910342R with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy M20-7910342R with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | M20-7910342R |
|---|---|
| Manufacturer | Harwin |
| Description | CONN RCPT 2.54MM SMD 3POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.79 | $0.698 | $0.603 | $0.493 | ||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Board |
| Series: | M20 |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.100" (2.54mm) |
| Packaging: | Cut Tape (CT) |
| Other Names: | 952-3196-1 |
| Operating Temperature: | -40°C ~ 105°C |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 3 |
| Mounting Type: | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 7 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polyamide (PA9T), Nylon 9T, Glass Filled |
| Insulation Height: | 0.098" (2.50mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | - |
| Fastening Type: | Push-Pull |
| Detailed Description: | 3 Position Receptacle Connector 0.100" (2.54mm) Surface Mount, Right Angle Gold |
| Current Rating: | 3A |
| Contact Type: | Forked |
| Contact Shape: | Square |
| Contact Material: | Phosphor Bronze |
| Contact Length - Post: | - |
| Contact Finish Thickness - Post: | 80.0µin (2.03µm) |
| Contact Finish Thickness - Mating: | 0.59µin (0.015µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Gold |
| Connector Type: | Receptacle |
| Applications: | General Purpose |
| Email: | info@cjjhk.com |
Introduce
We can supply M20-7910342R, use the request quote form to request M20-7910342R pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number M20-7910342R.The price and lead time for M20-7910342R depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# M20-7910342R.We look forward to working with you to establish long-term relations of cooperation
