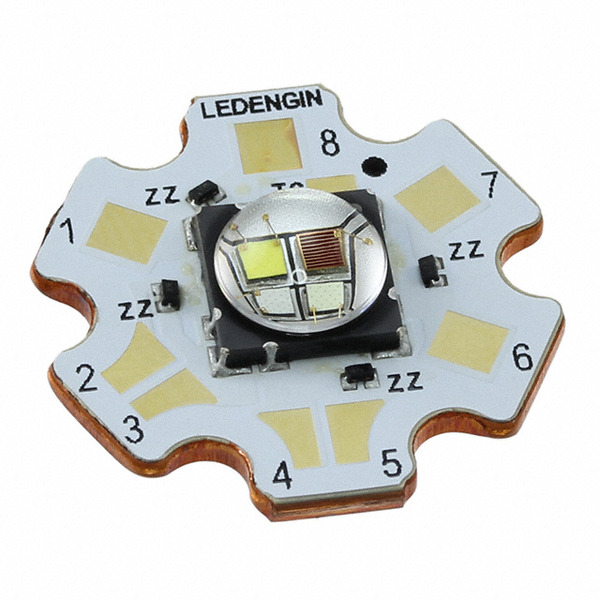

LZ4-V0MD0C-0000
LED Engin
Images are for reference only.
See Product Specifications for product details.
Buy LZ4-V0MD0C-0000 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy LZ4-V0MD0C-0000 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | LZ4-V0MD0C-0000 |
|---|---|
| Manufacturer | LED Engin |
| Description | LED DOME RGBW 4CH CLEAR MCPCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $23.50 | $22.498 | $17.498 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $14.999 | $14.249 | $13.499 | |||
Specifications
Data sheet
| Wavelength: | 624nm Red, 525nm Green, 457nm Blue |
|---|---|
| Voltage - Forward (Vf) (Typ): | 2.5V Red, 3.6V Green, 3.2V Blue, 3.2V White |
| Viewing Angle: | 95° |
| Type: | LED Module |
| Temperature - Test: | 25°C |
| Size / Dimension: | 19.90mm Diameter |
| Series: | - |
| Packaging: | - |
| Other Names: | 1537-1151-1 1537-1151-1-ND 1537-1159 1537-1159-1 1537-1159-1-ND |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 10 Weeks |
| Lumens/Watt @ Current - Test: | 76 lm/W Red, 63 lm/W Green, 15 lm/W Blue, 104 lm/W White |
| Light Emitting Surface (LES): | 6.50mm Diameter |
| Lens Type: | Domed |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height: | 5.40mm |
| Flux @ Current/Temperature - Test: | 133 lm Red, 160 lm Green, 33 lm Blue, 234 lm White |
| Features: | - |
| Detailed Description: | LED Lighting COBs, Engines, Modules LED Module - Red, Green, Blue, White - Cool Starboard |
| Current - Test: | 700mA Red, 700mA Green, 700mA Blue, 700mA White |
| Current - Max: | 1A Red, 1A Green, 1A Blue, 1A White |
| Configuration: | Starboard |
| Color: | Red, Green, Blue, White - Cool |
| CRI (Color Rendering Index): | 75 (Typ) |
| CCT (K): | 6335K |
| Email: | info@cjjhk.com |
Introduce
We can supply LZ4-V0MD0C-0000, use the request quote form to request LZ4-V0MD0C-0000 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number LZ4-V0MD0C-0000.The price and lead time for LZ4-V0MD0C-0000 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# LZ4-V0MD0C-0000.We look forward to working with you to establish long-term relations of cooperation
