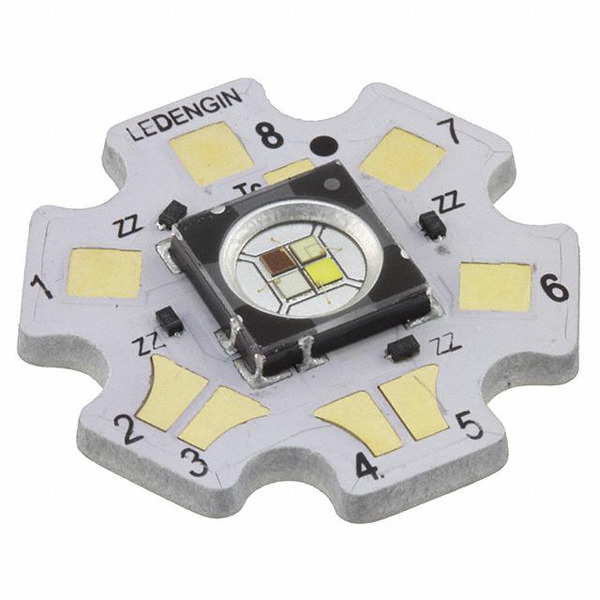

LZ4-24MDCA-0000
LED Engin
Images are for reference only.
See Product Specifications for product details.
Buy LZ4-24MDCA-0000 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy LZ4-24MDCA-0000 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | LZ4-24MDCA-0000 |
|---|---|
| Manufacturer | LED Engin |
| Description | LED EMITTER RGBW FLAT STAR MCPCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 40 pcs | ||
|---|---|---|---|---|---|
| $25.69 | $22.702 | $19.834 | |||
| 120 pcs | 280 pcs | 520 pcs | |||
| $17.325 | $16.429 | $15.891 | |||
Specifications
Data sheet
| Wavelength: | 623nm Red, 523nm Green, 460nm Blue |
|---|---|
| Voltage - Forward (Vf) (Typ): | 2.5V Red, 3.6V Green, 3.2V Blue, 3.2V White |
| Viewing Angle: | 110° |
| Type: | LED Module |
| Temperature - Test: | 25°C |
| Size / Dimension: | 19.90mm Diameter |
| Series: | - |
| Packaging: | - |
| Other Names: | 1537-1036 |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 10 Weeks |
| Lumens/Watt @ Current - Test: | 37 lm/W Red, 50 lm/W Green, 13 lm/W Blue, 80 lm/W White |
| Light Emitting Surface (LES): | - |
| Lens Type: | Flat |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height: | 3.20mm |
| Flux @ Current/Temperature - Test: | 65 lm (Typ) Red, 125 lm (Typ) Green, 30 lm (Typ) Blue, 180 lm (Typ) White |
| Features: | - |
| Detailed Description: | LED Lighting COBs, Engines, Modules LED Module - Red, Green, Blue, White - Cool (RGBW) Starboard |
| Current - Test: | 700mA |
| Current - Max: | 1.5A |
| Configuration: | Starboard |
| Color: | Red, Green, Blue, White - Cool (RGBW) |
| CRI (Color Rendering Index): | - |
| CCT (K): | 6500K |
| Email: | info@cjjhk.com |
Introduce
We can supply LZ4-24MDCA-0000, use the request quote form to request LZ4-24MDCA-0000 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number LZ4-24MDCA-0000.The price and lead time for LZ4-24MDCA-0000 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# LZ4-24MDCA-0000.We look forward to working with you to establish long-term relations of cooperation
