LD56050DPU105R
STMicroelectronics

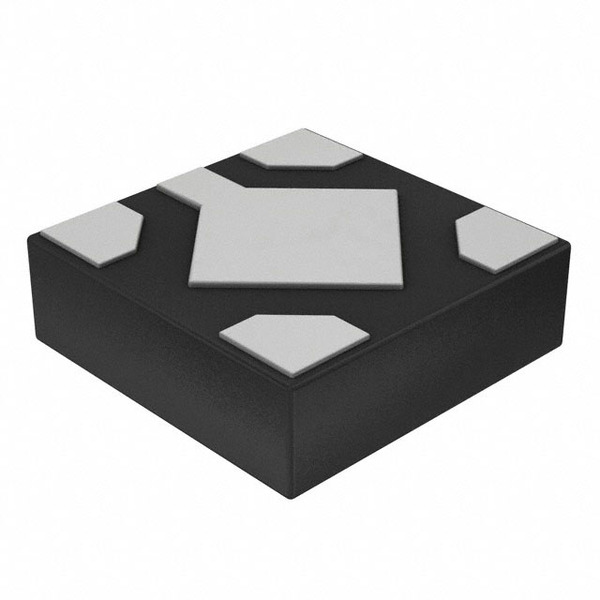

Images are for reference only.
See Product Specifications for product details.
Buy LD56050DPU105R with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy LD56050DPU105R with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | LD56050DPU105R |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | 500mA ultra low dropout linear regulator with bias supply, DFN4 1.2x1.2, Tape and Reel |
| Lead Free Status / RoHS Status |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.296 | $0.267 | $0.241 | $0.236 | ||
Specifications
Data sheet
| Voltage Dropout (Max): | 0.25V @ 500mA |
|---|---|
| Voltage - Output (Min/Fixed): | 1.05V |
| Voltage - Output (Max): | - |
| Voltage - Input (Max): | 5.5V |
| Supplier Device Package: | 4-DFN (1.2x1.2) |
| Series: | - |
| Protection Features: | Over Temperature. Short Circuit |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | 4-XDFN Exposed Pad |
| PSRR: | 75dB (1kHz) |
| Output Type: | Fixed |
| Output Configuration: | Positive |
| Other Names: | 497-18011-2 |
| Operating Temperature: | -40°C ~ 85°C (TJ) |
| Number of Regulators: | 1 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Detailed Description: | Linear Voltage Regulator IC 1 Output 500mA 4-DFN (1.2x1.2) |
| Current - Quiescent (Iq): | 40µA |
| Current - Output: | 500mA |
| Control Features: | Enable |
| Email: | info@cjjhk.com |
Introduce
We can supply LD56050DPU105R, use the request quote form to request LD56050DPU105R pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number LD56050DPU105R.The price and lead time for LD56050DPU105R depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# LD56050DPU105R.We look forward to working with you to establish long-term relations of cooperation
