LB15SKW01-5D05-JB
NKK Switches

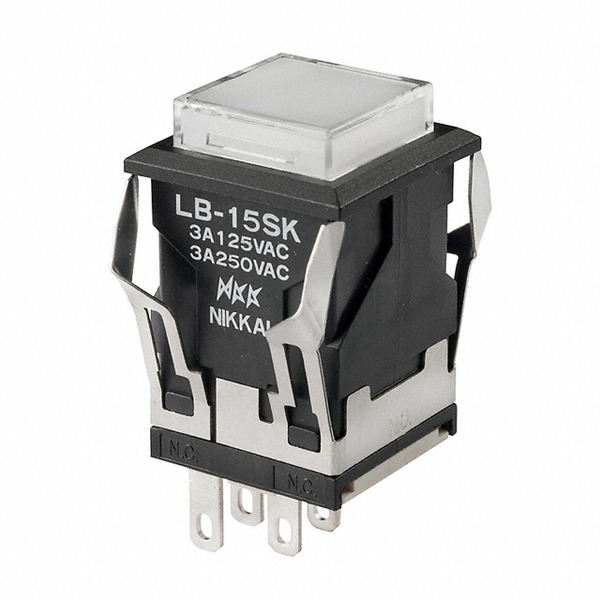

Images are for reference only.
See Product Specifications for product details.
Buy LB15SKW01-5D05-JB with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy LB15SKW01-5D05-JB with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | LB15SKW01-5D05-JB |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH PUSHBUTTON SPDT 3A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $18.99 | $18.726 | $18.462 | $17.144 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $16.88 | $15.034 | $14.506 | |||
Specifications
Data sheet
| Voltage Rating - DC: | 30V |
|---|---|
| Voltage Rating - AC: | 125V |
| Type: | Standard, Illuminated |
| Termination Style: | Solder, Quick Connect - 0.110" (2.8mm) |
| Switch Function: | On-Mom |
| Series: | LB |
| Panel Cutout Dimensions: | Square - 16.20mm² |
| Packaging: | Bulk |
| Other Names: | LB15SKW01-5D05-JB-RO LB15SKW01-5D05-JB-RO-ND LB15SKW015D05JB |
| Operating Temperature: | -25°C ~ 50°C |
| Mounting Type: | Panel Mount, Snap-In |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mechanical Life: | 1,000,000 Cycles |
| Manufacturer Standard Lead Time: | 13 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Illumination Voltage (Nominal): | 5 VDC |
| Illumination Type, Color: | LED, Amber |
| Features: | - |
| Electrical Life: | 100,000 Cycles |
| Detailed Description: | Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Snap-In |
| Current Rating: | 3A (AC/DC) |
| Color - Actuator/Cap: | Clear (White Filter/Diffuser) |
| Circuit: | SPDT |
| Actuator Type: | Square, Button |
| Email: | info@cjjhk.com |
Introduce
We can supply LB15SKW01-5D05-JB, use the request quote form to request LB15SKW01-5D05-JB pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number LB15SKW01-5D05-JB.The price and lead time for LB15SKW01-5D05-JB depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# LB15SKW01-5D05-JB.We look forward to working with you to establish long-term relations of cooperation
