LB11822-E
AMI Semiconductor / ON Semiconductor

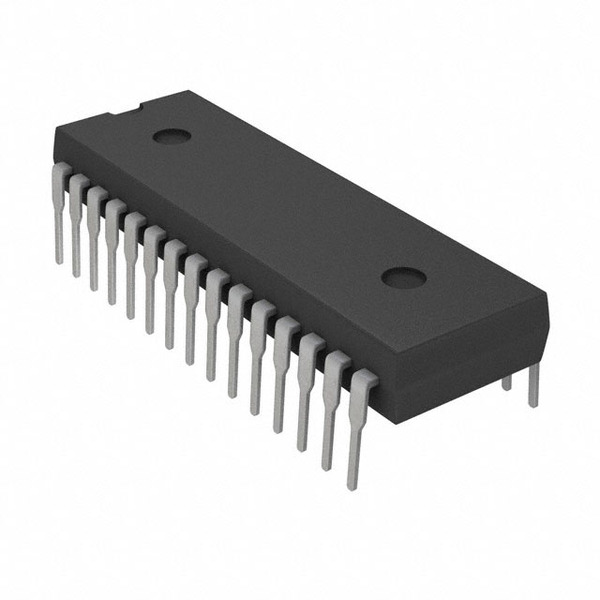

Images are for reference only.
See Product Specifications for product details.
Buy LB11822-E with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy LB11822-E with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | LB11822-E |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC MOTOR DRIVER PWM 30DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a Quote | ||||
Specifications
Data sheet
| Voltage - Supply: | 9.5 V ~ 28 V |
|---|---|
| Voltage - Load: | 9.5 V ~ 28 V |
| Technology: | - |
| Supplier Device Package: | 30-PDIP |
| Step Resolution: | - |
| Series: | - |
| Packaging: | Tube |
| Package / Case: | 30-SDIP (0.400", 10.16mm) |
| Output Configuration: | Half Bridge (3) |
| Operating Temperature: | -20°C ~ 80°C (TA) |
| Mounting Type: | Through Hole |
| Motor Type - Stepper: | - |
| Motor Type - AC, DC: | Brushless DC (BLDC) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Interface: | PWM |
| Function: | Driver - Fully Integrated, Control and Power Stage |
| Detailed Description: | Motor Driver PWM 30-PDIP |
| Current - Output: | 3.1A |
| Applications: | General Purpose |
| Email: | info@cjjhk.com |
Introduce
We can supply LB11822-E, use the request quote form to request LB11822-E pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number LB11822-E.The price and lead time for LB11822-E depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# LB11822-E.We look forward to working with you to establish long-term relations of cooperation
