L7985ATR
STMicroelectronics

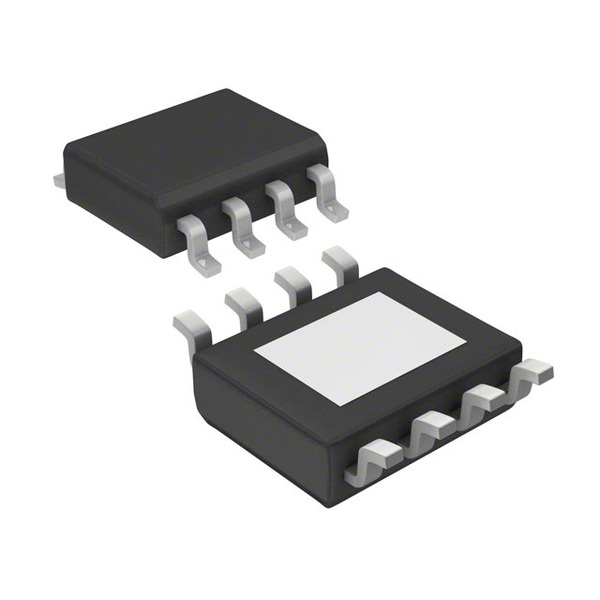

Images are for reference only.
See Product Specifications for product details.
Buy L7985ATR with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy L7985ATR with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | L7985ATR |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | L7985 Series 38 V 2 A 275 kHz Buck Surface Mount Switching Regulator HSOP-8 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $1.608 | $1.451 | $1.309 | $1.28 | ||
Specifications
Data sheet
| Voltage - Output (Min/Fixed): | 0.6V |
|---|---|
| Voltage - Output (Max): | 38V |
| Voltage - Input (Min): | 4.5V |
| Voltage - Input (Max): | 38V |
| Topology: | Buck |
| Synchronous Rectifier: | No |
| Supplier Device Package: | 8-HSOP |
| Series: | - |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Output Type: | Adjustable |
| Output Configuration: | Positive |
| Other Names: | 497-13222-2 L7985ATR-ND |
| Operating Temperature: | -40°C ~ 150°C (TJ) |
| Number of Outputs: | 1 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Manufacturer Standard Lead Time: | 38 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Function: | Step-Down |
| Frequency - Switching: | 250kHz ~ 1MHz |
| Detailed Description: | Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 2A 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Current - Output: | 2A |
| Base Part Number: | L7985A |
| Email: | info@cjjhk.com |
Introduce
We can supply L7985ATR, use the request quote form to request L7985ATR pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number L7985ATR.The price and lead time for L7985ATR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# L7985ATR.We look forward to working with you to establish long-term relations of cooperation
