L6206PD
STMicroelectronics

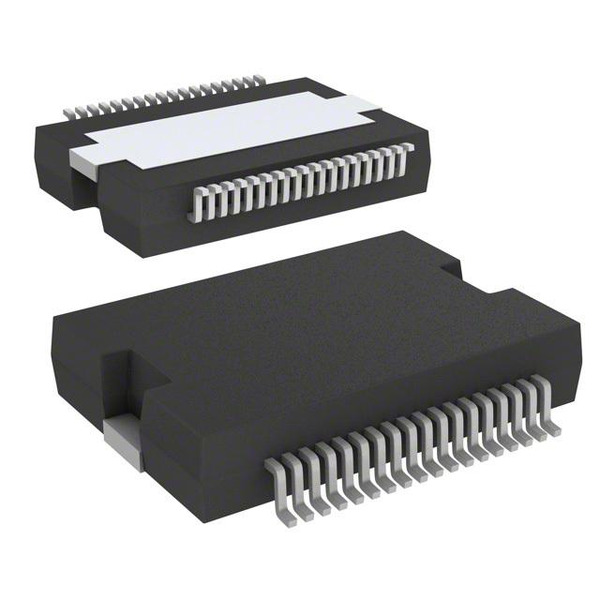

Images are for reference only.
See Product Specifications for product details.
Buy L6206PD with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy L6206PD with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | L6206PD |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | Dual Full Bridge Motor Driver 48V 38-Pin (36+2Tab) PowerSO T/R |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $7.356 | $6.64 | $5.989 | $5.859 | ||
Specifications
Data sheet
| Voltage - Supply: | 8 V ~ 52 V |
|---|---|
| Voltage - Load: | 8 V ~ 52 V |
| Technology: | BCDMOS |
| Supplier Device Package: | PowerSO-36 |
| Series: | - |
| Rds On (Typ): | 300 mOhm |
| Packaging: | Tube |
| Package / Case: | 36-BSSOP (0.433", 11.00mm Width) Exposed Pad |
| Output Configuration: | Half Bridge (4) |
| Other Names: | 497-5341-5 L6206PD-ND |
| Operating Temperature: | -25°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Load Type: | Inductive |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Interface: | Logic |
| Features: | Bootstrap Circuit |
| Fault Protection: | Current Limiting, Over Temperature, UVLO |
| Detailed Description: | Half Bridge (4) Driver DC Motors, Stepper Motors, Voltage Regulators BCDMOS PowerSO-36 |
| Current - Peak Output: | 5.6A |
| Current - Output / Channel: | 2.8A |
| Base Part Number: | L6206 |
| Applications: | DC Motors, Stepper Motors, Voltage Regulators |
| Email: | info@cjjhk.com |
Introduce
We can supply L6206PD, use the request quote form to request L6206PD pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number L6206PD.The price and lead time for L6206PD depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# L6206PD.We look forward to working with you to establish long-term relations of cooperation
