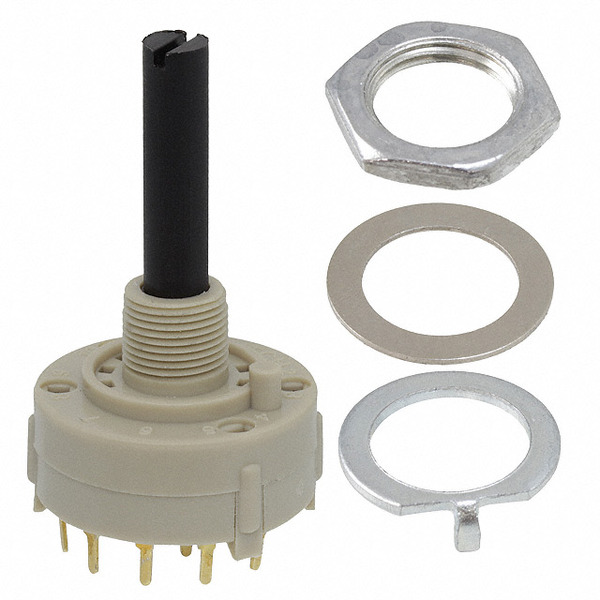

KC15B02NPFB31.5MM
E-Switch
Images are for reference only.
See Product Specifications for product details.
Buy KC15B02NPFB31.5MM with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy KC15B02NPFB31.5MM with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | KC15B02NPFB31.5MM |
|---|---|
| Manufacturer | E-Switch |
| Description | SWITCH ROTARY 5POS 350MA 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $7.94 | $6.555 | $6.469 | $5.951 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $5.693 | $5.089 | $5.003 | $4.916 | ||
Specifications
Data sheet
| Voltage Rating - AC: | 125V |
|---|---|
| Termination Style: | PC Pin |
| Series: | KC |
| Panel Cutout Dimensions: | Circular - 10.20mm Dia |
| Operating Force: | 8.770gfm |
| Number of Positions: | 5 |
| Number of Poles per Deck: | 1 |
| Number of Decks: | 1 |
| Mounting Type: | Panel Mount, Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 10 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Index Stops: | Fixed |
| Features: | - |
| Detailed Description: | Rotary Switch 5 Position SP5T 350mA (AC) 125VAC Panel Mount, Through Hole |
| Depth Behind Panel: | 14.10mm |
| Current Rating: | 350mA (AC) |
| Contact Timing: | Non-Shorting (BBM) |
| Contact Material: | Copper Alloy |
| Contact Finish: | Gold |
| Circuit per Deck: | SP5T |
| Angle of Throw: | 30° |
| Actuator Type: | Round (6mm Dia), Slotted |
| Actuator Length: | 23.50mm |
| Email: | info@cjjhk.com |
Introduce
We can supply KC15B02NPFB31.5MM, use the request quote form to request KC15B02NPFB31.5MM pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number KC15B02NPFB31.5MM.The price and lead time for KC15B02NPFB31.5MM depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# KC15B02NPFB31.5MM.We look forward to working with you to establish long-term relations of cooperation
